NUVO Aluminum Deck Railing Kit

To start ordering your Railing there are number of standard procedures every homeowner need to go thru

- Selecting the desired color

- NUVO railing is available 6’and 8’. Make your drawing and find out how many 6’ and 8’ sections you need. Doing this process try to make all railing sections on a row same size (for 20’ railing section do 5’-5’-5’-5’ from 6’ sections or 7’-7’-7’ from 8’ section and NOT 6’-6’-8’). Sections length are considered from center of post to center of post. Therefore, the actual length of 6’ and 8’ section would be slightly less.

- Determine the height of your railing. As per Ontario buildings code:

i. if the deck/porch height above the grade is 5’ and more then your railing’s handrail should be 42” high from deck surface.

ii. If the deck/porch height from the grade is less than 5’ your railing’s handrail should be 36” high from deck surface.

iii. If the deck/porch height from the grade is less than 2’, then you can have your deck/porch without railing.

Follow the below steps to purchase NUVO Railing. We strongly recommend to follow NUVO Railing Installation guides.

You are on Step 1

STEP 1. Select Rail Color and Kit

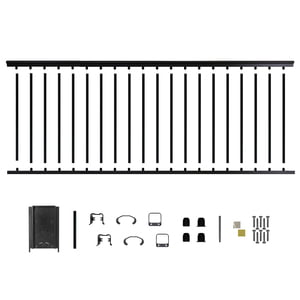

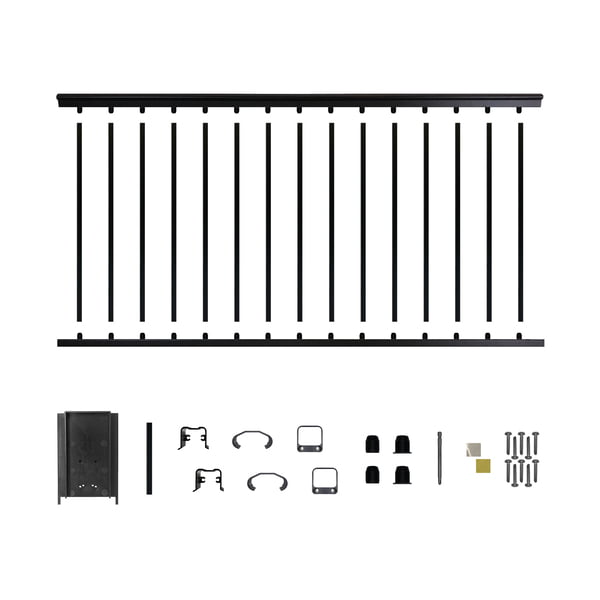

Option 1. NUVO railing sections (Horizontal and Stair) are available in kits. Each kit includes mounting brackets, screws and square balusters (15 for 6' section and 20 for 8' section). Kit needs to be assembled while installing.

NUVO Aluminum Railing Section

Option 2. In cases you want to install glass railing then chose NUVO Rail Kit for Glass Panels

Glass panels are available in certain dimensions therefore if the needed size of glass panel is not available then glass need to be ordered from glass company, which will cost you around $7 to $10 per square foot.

STEP 2. Select Stair Panels

STEP 3. Select Post Kits

STEP 4. Brackets (if you have cut sections)

STEP 5. Over-The-Post post caps (skip if you do not have Over-The-Post railing applications)
