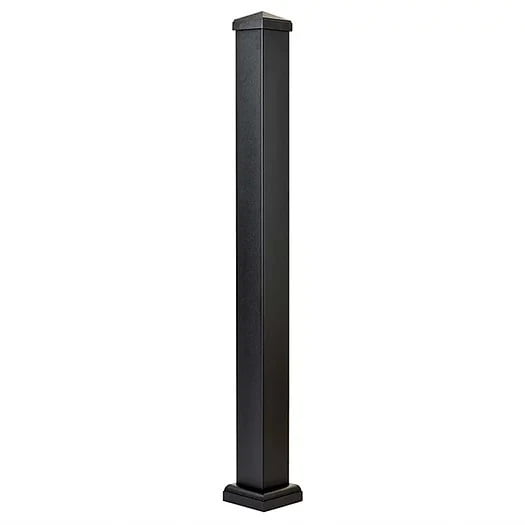

NUVO Surface Mount Post - 3"x 3"

To start ordering your Railing there are number of standard procedures every homeowner need to go thru

- Selecting the desired color

- NUVO railing is available 6’and 8’. Make your drawing and find out how many 6’ and 8’ sections you need. Doing this process try to make all railing sections on a row same size (for 20’ railing section do 5’-5’-5’-5’ from 6’ sections or 7’-7’-7’ from 8’ section and NOT 6’-6’-8’). Sections length are considered from center of post to center of post. Therefore, the actual length of 6’ and 8’ section would be slightly less.

- Determine the height of your railing. As per Ontario buildings code:

i. if the deck/porch height above the grade is 5’ and more then your railing’s handrail should be 42” high from deck surface.

ii. If the deck/porch height from the grade is less than 5’ your railing’s handrail should be 36” high from deck surface.

iii. If the deck/porch height from the grade is less than 2’, then you can have your deck/porch without railing.

Follow the below steps to purchase NUVO Railing. We strongly recommend to follow NUVO Railing Installation guides.

You are on Step 3

STEP 1. Select Rail Color and Kit

STEP 2. Select Stair Panels

STEP 3. Select Post Kits

Nuvo aluminum 3”x 3” railing posts are available in 2 options.

• Face mount posts

and

• Fascia mount posts (comes with mounting bracket)

Option 1. NUVO Surface mount posts

• Use 44" post for 42" high deck railing. These posts are used for all standard 42" high railing and all stair installations. Comes with pyramid cap and skirt.
• Use 39-3/4" posts as inline posts for 42" high railing and for all standard 36" high railing installations. Comes with pyramid cap and skirt.
• Use 33-3/4" posts as in-line posts for 36" high railing. Comes with pyramid cap and skirt.

Option 2. NUVO Fascia mount posts

3" x 3" x 54" used for 36" high & 42" high deck and stair rail kit. Comes with pyramid cap. To be used with all fascia mount deck and stair installations.

Consider post caps in Step 5 if posts installed as inline posts.

STEP 4. Brackets (if you have cut sections)

STEP 5. Over-The-Post post caps (skip if you do not have Over-The-Post railing applications)
