TREX Transcend Railing
Get started with the simple steps below to purchase your TREX Transcend railing deck supplies.
NOTE: We strongly recommend following TREX Railing installation guides for best results.
Step 1: Top & Bottom Rails
Choose your color
- TREX Transcend railing is available in six colors: Classic White, Charcoal Black, Gravel Path, Rope Swing, Tree House, and Vintage Lantern.
Determining the number of sections
- Make a drawing of your deck and determine how many TREX Transcend rail sections you will need.
- Try to make all railing sections on a row the same size. (For 20 feet of railing, create four 5' sections with 6' rails or three approximately 7' sections with 8' rails – rather than 6', 6', 8'.)
- Section length is measured from the center of the post to the center of the post. Therefore, the actual size of 6' or 8' sections will be slightly less than six or eight feet.
Step 2: Post Sleeve, Post Cap & Post Skirt

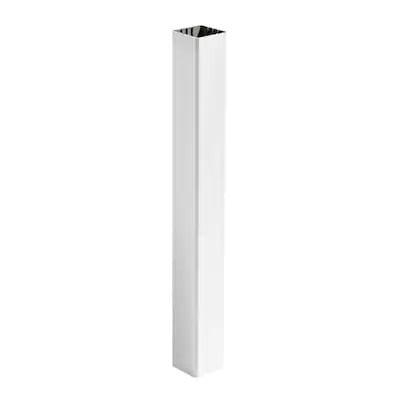

- When you select post kits for TREX Transcend railing, you can choose 4"x4" posts or 6"x6" posts. 6"x6" post sleeves are available only in white.
- Please note that these are TREX post sleeves and must be installed over 4x4 lumber posts or TREX Post surface mounts (see Step 4).
- For a clean, seamless look, choose TREX post sleeves, caps, and skirt deck supplies of the same color.
- Below are TREX Transcend post kits in two separate sections with 4"x4" and 6"x6" options.
TREX Transcend Post Sleeves, Post Caps & Post Skirt
Step 3: Infill Kits and Balusters
- Round aluminum balusters – available in three colors: Charcoal Black, Bronze, and Classic White

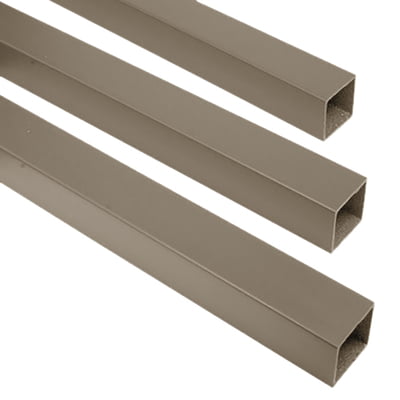

- Square Composite Balusters – available in all 6 Transcend railing colors
- Use 30" balusters for 36" railing.
- Use 36" balusters for 42" railing.
Refer to your local building codes to determine the required Railing height.
The following requirements apply in Ontario:
- If the deck/porch height is above-grade 5' or more, your handrail should be 42" high (from the deck surface).
- If the deck/porch height is less than 5' above-grade, your handrail should be 36" high (from the deck surface).
- If the deck/porch height is less than 2' above-grade, a railing is not required.
TREX Transcend Infill kits & Balusters
Step 4: Parts

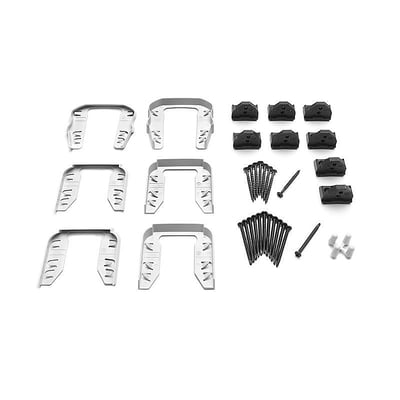

- TREX Transcend infill kits (Step 3) include the necessary quantity of cut kits (brackets) to install a single section.

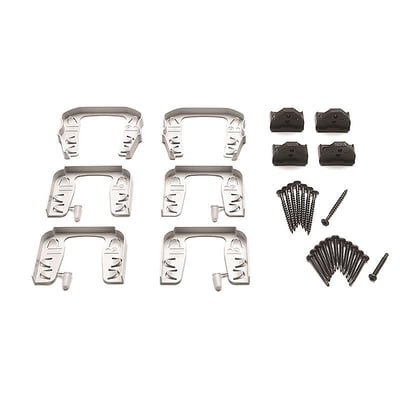

- TREX Transcend railing cut kits are the perfect cost-effective solution for installations that require making two railing sections from one kit.
- Cut kits include the necessary brackets and gaskets to mount one horizontal section of TREX Transcend railing.

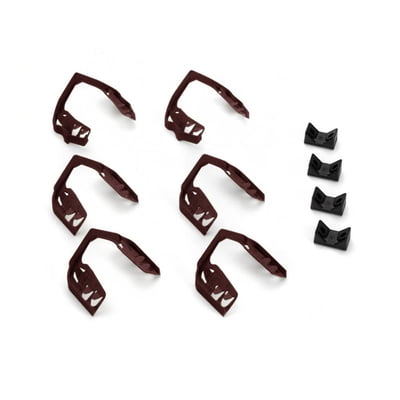

- The TREX Transcend railing 45-degree bracket kit includes brackets to install one complete section on Transcend railing under 45 degrees to the post. This pack works with 4x4 posts.
Post Surface Mounts
Want to install TREX Transcend railing posts directly onto your deck or porch? Use TREX post surface mounts.
- Install railing posts directly onto a deck or porch without using a 4x4 treated post.
- Designed for use on decks and concrete surfaces.
Step 4: Final Touches - TREX Lighting
- For best results, choose TREX lighting fixtures that are the same colour as your TREX Post Kit.
- Note that TREX lighting operates on DC power. NEVER mix AC and DC fixtures on the same circuit. Doing so will result in premature fixture failure and is not covered by the TREX limited warranty.
- You must use a TREX transformer on all TREX lighting installations.
- Install wiring and splitters before installing decking and railing.
- Use male-to-male connection wire (lengths vary) to connect to each required splitter.
- DO NOT run wires between deck boards and joists. Wiring must travel under the deck and behind the risers.
TREX Transcend Rail Lighting
- Available in three distinct powder-coated finishes: Black, Bronze, and White.
- Welded panel features your choice of square or round aluminum balusters.
- Adjustable up to 48" wide. (Trim the panel to the size you need and slide the posts on.)
- Installs perfectly with the TREX Gate Hardware Kit (Sold Separately).
Order Railing in 5 Simple Steps
- TREX Transcend railing is available in 6 colors:
- Classic White, Charcoal Black, Gravel Path, Rope Swing, Tree House, Vintage Lantern
- TREX Transcend railing is available in 6’ and 8’ sections.
- Check local building codes to ensure compliance.
- Select the railings and kits you desire to create your custom TREX railing.
- See the tabs above for more details on specific deck supplies.
- Enhance your deck with TREX lighting and a TREX gate for the ultimate outdoor oasis.
