Fortress Evolution 4' Strap for Mid-span blocking
$27.68
Fortress Evolution 4' Strap for Mid-span blocking manufactured to match the same spacing as the S-Ledger for easy mid-span blocking applications.
For Joist Spans greater than 8’, blocking is required midspan at every bay. There are two different installation options for the 12" O.C. and 16" O.C. straps; one for ground level decks and one for elevated decks.
SIZE
Choose Quantity
Product Details
Specifications
Ground Level Decks

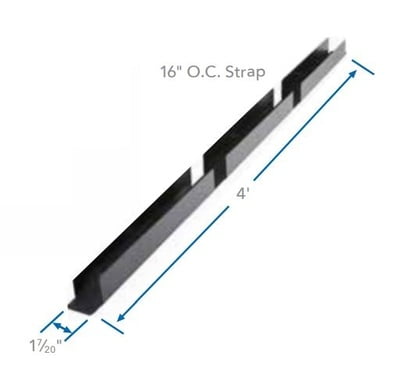

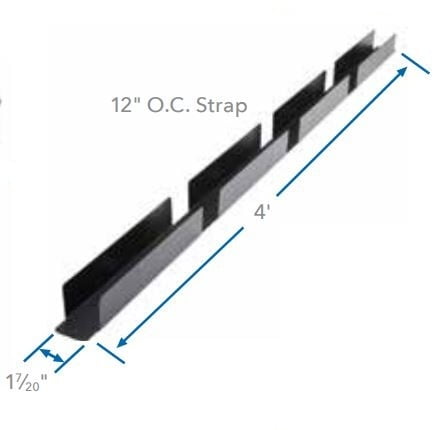

Using Evolution 12” or 16" O.C. Straps, Place on the TOPSIDE of the joist. The strap is 4’ long and will cover (4) Joist for the 12” O.C. version and (3) Joist on the 16” O.C. version. This method should only be used when the deck is ground-level and not accessible from the bottom side.
No fasteners are required when installing Strap on the top-side.
Elevated Decks
Using Evolution 12” or 16" O.C. Straps, place on the UNDERSIDE of the joist. The strap is 4’ long and will cover (4) Joist for the 12” O.C. version and (3) Joist on the 16” O.C. version.
This is the preferred method for installation and should be used anytime there's access to the bottom of the deck.
Dimensions
- Length4' (1,219mm)
- Width/Height/Length1-7/20"x4'
Material Specification
- ColorBlack Sand
- CoatingIndustrial Grade Powder Coating
- MaterialGalvanized Steel
