TREX Seal Ledger Tape
$321.90

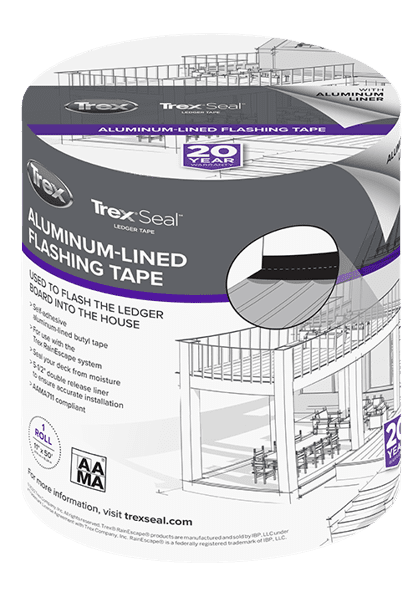

What Is TREX Seal Ledger Tape?
- 11” x 50’ self-adhering butyl flashing tape with an aluminum liner
- Helps to prevent deck failure by sealing the gaps between the house and the substructure
- Creates a waterproof barrier that moisture-proofs the area between the ledger board and the deck
Why TREX Seal Ledger Tape?
- A superior alternative to traditional ledger flashing
- Waterproof protection as opposed to water resistance
- Seals any gaps between the ledger board and the substructure
- Convenient 5-1/2″ double release liner to ensure accurate installation
- AAMA 711-13 Compliant
- Backed by a 20-year warranty
- Two-time award winner recognized for innovative performance in ledger protection
Title
Choose Quantity
Product Details

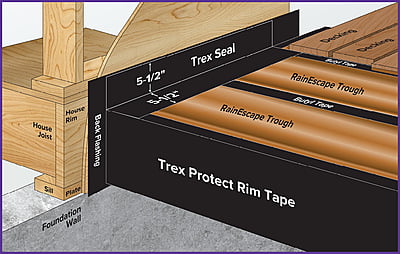

WHEN INSTALLING WITH THE TREX RAINESCAPE SYSTEM
- Install the Trex RainEscape system.
- Mark a 5-1/2″ line above the ledger board under the house wrap.
- Fold the Trex Seal Ledger Tape in half. Remove one of the release liners. Press to seal against the vertical surface at the 5-1/2″ line.
- Once the vertical surface is attached, remove the second release liner, unfold the Trex Seal Ledger Tape, and press firmly against the Trex RainEscape system.

USE ALONG WITH TREX PROTECT
- Mark a 5-1/2″ line above the ledger board under the siding.
- Fold the Trex Seal Ledger Tape in half. Remove one of the release liners. Press to seal against the vertical surface.
- Once the vertical surface is attached, remove the second release liner, unfold the Trex Seal Ledger Tape, and press firmly against the ledger.
- With a utility knife cut along each joist side and fold the tabs down. Firmly press the cut tabs against the ledger.
