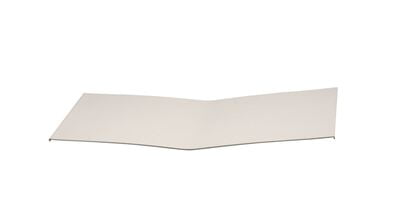

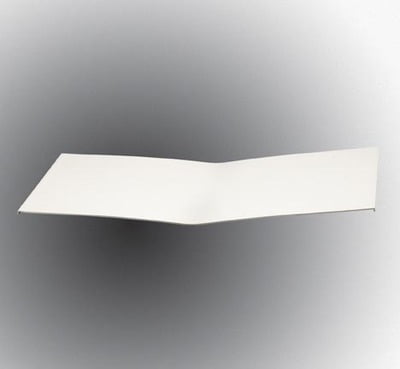

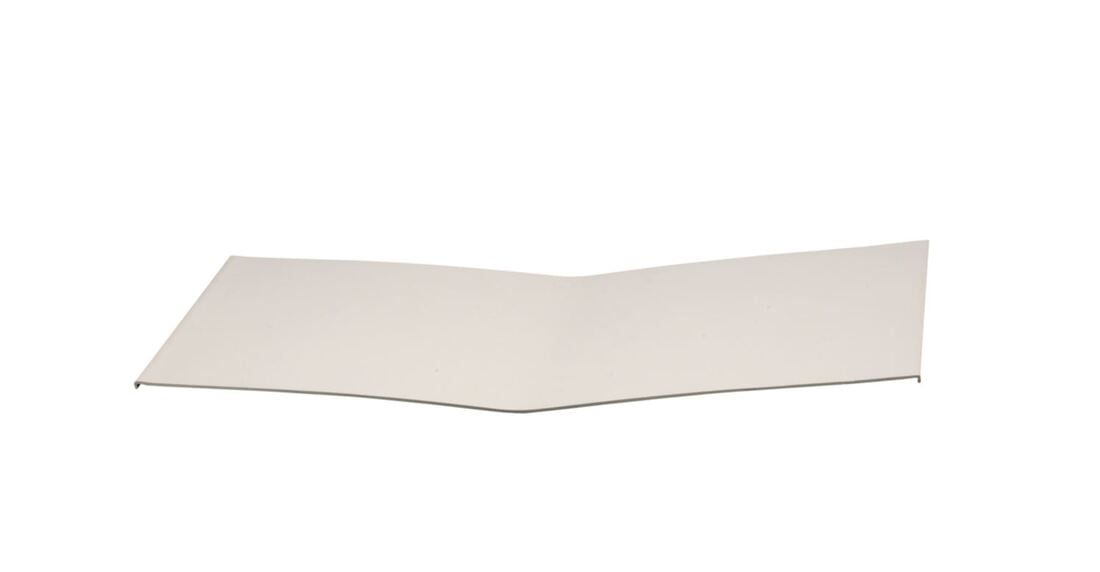

TimberTech DrySpace V-Panel
$51.67 - $78.84
TimberTech DrySpace V-Panel is to be snapped into the combo brackets and slid into the ledger board. This is the most important piece of your DrySpace system as it is what collects and channels the water away from the home and provides an attractive ceiling aesthetic.
V-Panels are available in 12' and 16' long and for 12" on-center and 16" on-center joists' spacing.
To determine how many v-panels are required for your project, you will need to know the number of joist openings your deck structure has and how long (Ft) your joists are. Once you have your base numbers you can then chose the appropriate size and quantity of panels to order.
Color
Length
Width
Choose Quantity
Product Details
V-Panel installation
- Measure, then cut each V-Panel 3" shorter than the joist to allow for drainage.
- First install the V-Panel that will be anchored in the Ledger F-Bracket by inserting one panel edge into one of the Joist Cover’s outside brackets. Next flex the panel to insert the opposite edge into the other Combo Bracket, then push the rest of the V-Panel in place.
- To insert the V-Panel into the Ledger F-Bracket, place a putty knife in each corner where the Combo Bracket’s outside bracket and Ledger F-Bracket overlap. Place a scrap piece of 2x4 lumber against the open edge of the V-Panel and tap with a hammer.
***NOTE: The 2x4 protects the V-Panel edge from damage. V-Panels must stop at the beam.
- To collect and drain away water an optional vinyl or aluminum gutter can be installed.
