Starborn Structural H19
Non-returnable
$29.65 - $520.58
Starborn Structural H19 - Truss to Top Plate / Multipurpose
Starborn® Structural H19 screws are designed for wood-to-wood connections in a variety of applications including decking, fencing, pergolas, landscape timbers, timber framing, and more.
Starborn® Structural H19 screws are fully tested and code compliant alternatives to traditional lag screws and through-bolts, with no pre-drilling required. Structural H19 screws feature a hex washer head for maximum drivability, a unique Tri-Forge™ point for reduced driving torque, and a high-adhesion exterior grade coating.

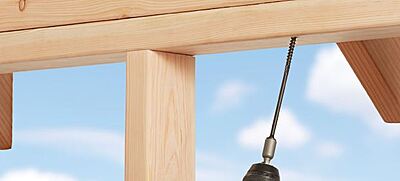

The 6" screw is ideal for truss or rafter to top plate connections and is a code compliant alternative to toe-nail connections, metal hurricane ties, and seismic clips.
Multipurpose Truss to Top Plate
Exterior Grade Code Compliant Wood Screw
HEX head
Length
Shank Diameter
Quantity (pc)
Choose Quantity
Product Details
Features
- IRC/IBC code compliant
- No pre-drilling
- Comparable to 3/8" lag screws

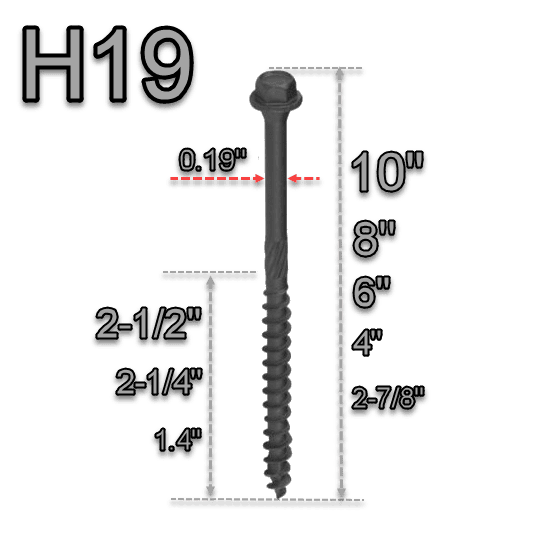

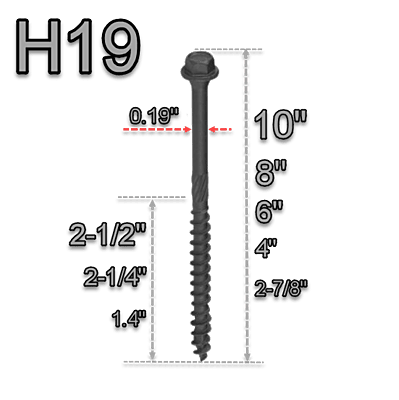

- 0.19" shank diameter
- 5/16" hex head for maximum drivability
- Tri-Forge™ Point provides a fast start, minimal splitting, and reduced driving torque
- Speed-Knurl™ reduces friction on the unthreaded shank for faster installation
- Black exterior grade coating has high-adhesion and is an ACQ approved alternative to hot-dip galvanized coatings
Code Compliance Reports
- Fastener Properties and Design Values (DrJ TER 1703-05)
- Truss or Rafter to Top Plate and Bottom Plate to Rim Board (DrJ TER 1703-02)

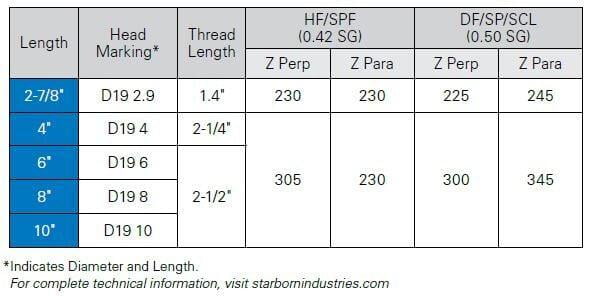

Lateral Design Values (lbf)
