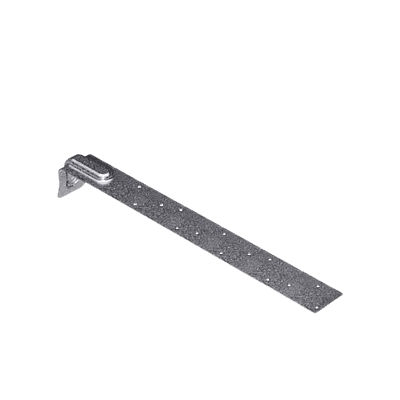

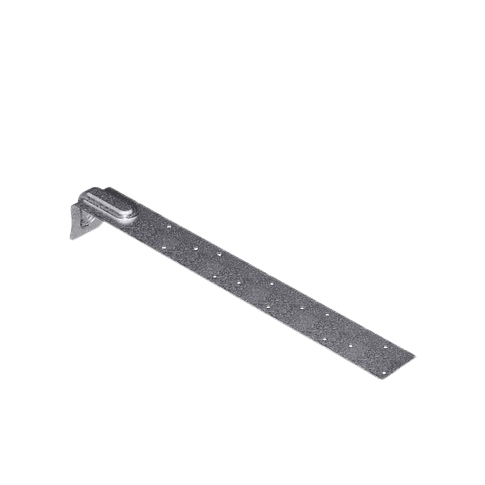

The PAI is a solution for wood-to-concrete and wood-to-masonry connections which satisfies code requirements. This purlin anchor is specifically designed for I-joist connections to concrete or masonry walls. The PAI features a dual-embedment line for ease of installation.
Size
Choose Quantity
Product Details
Key Features

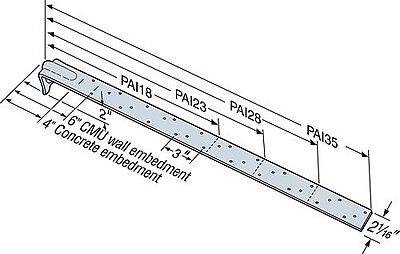

- Minimum embedment line indicators for both concrete and masonry installations
- Nailing pattern optimized for I-joist wood member
- Low design profile minimizes visibility
Material
- 12 gauge
Finish
- Galvanized
Installation
- Use all specified fasteners; some models have extra fastener holes. See General Notes.
- Purlin anchor must hook around rebar.
- Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
- Strap may be bent one full cycle (bent vertical 90°, then bent horizontal).
Edge Distance — minimum concrete edge distance is 5". Minimum concrete-block left-to-right edge distance is 20".
Concrete Block Wall — the minimum wall specifications are:
A — one # 4 vertical rebar, 32" long, 16" each side of anchor
B — two courses of grout-filled block above and below the anchor (no cold joints allowed)
C — a horizontal bond beam with two #4 rebars, 40" long, a maximum of two courses above or below the anchor
D — minimum masonry compressive strength, f'm = 1,500 psi
