Simpson Strong-Tie Wood Conn - Bases & Caps - Post Cap CBTZ
Non-returnable
$59.22 - $82.52

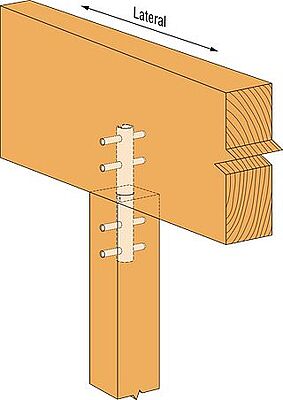

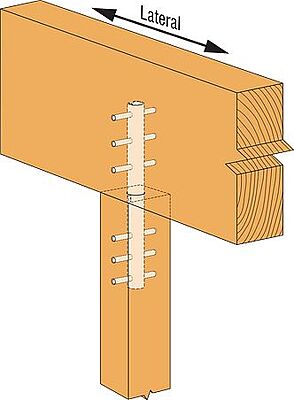

CBTZ is part of the concealed structural connector line that combines structural strength with invisibility. Designed to connect horizontal beams atop a vertical post, the CBTZ continues the structural load path into the foundation through the CPTZ. The simplistic cylindrical design allows installations with a common drill bit, eliminating challenging kerf cuts. The CBTZ is available in two models designed to connect beams and posts of a variety of sizes. It is part of a concealed connector system that includes the CPTZ and CJT
Size
Choose Quantity
Product Details
Key Features

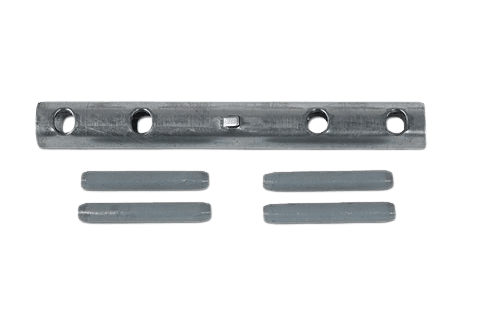

- Flattened sides assist installer while using the CBTZ as a template
- Locator tabs provide proper dimensional layout

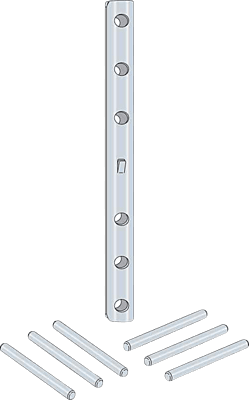

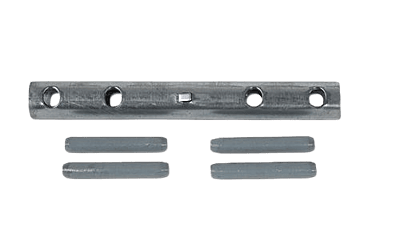

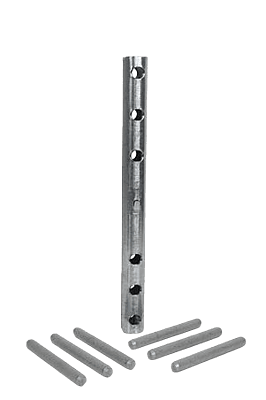

- Required dowel pins included

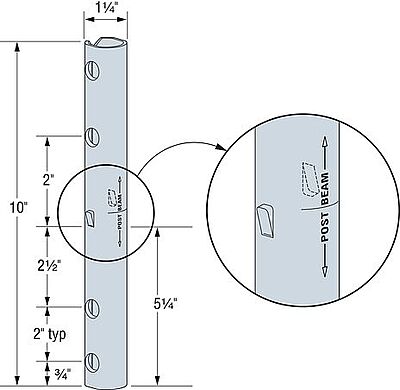

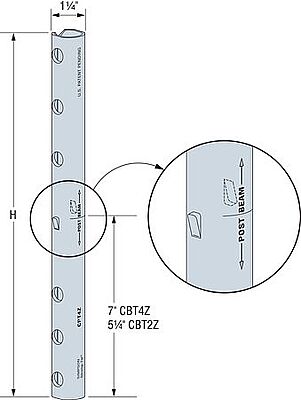

- Orientation markings distinguish which end installs into the post and which end goes into the beam
Material
- 12 gauge
Finish
- CBT — ZMAX® coating; the 1/2"-diameter drift dowels are mechanically galvanized in accordance with ASTM B695, Class 55
Installation
- Use all specified fasteners; see General Notes
- 1/2" dowels included

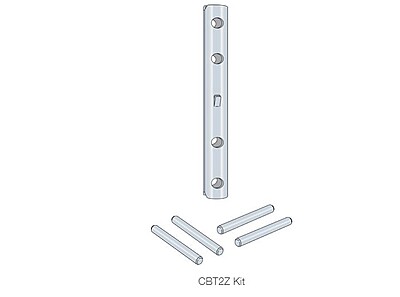

- CBT2Z requires a minimum 6"-deep nominal beam
- For step-by-step installation instruct
