Simpson Strong-Tie Wood Conn - Bases & Caps - Post Cap AC
Non-returnable
$8.27 - $8.67

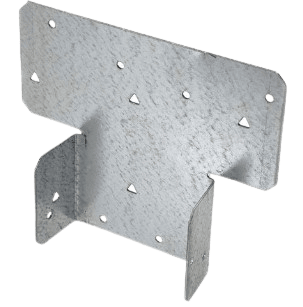

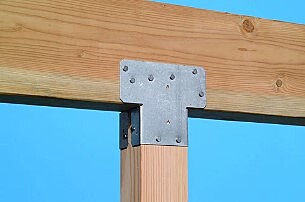

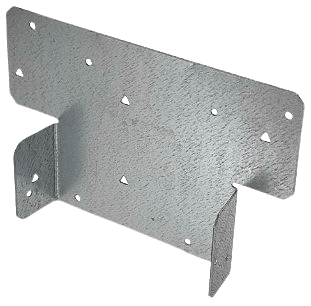

The AC is designed to provide a secure connection between a beam and a post. This post cap is ideal for new or retrofit applications where structural support is needed. The AC features both minimum and maximum nailing patterns for different load options.
Size
Choose Quantity
Product Details
Key Features
- Galvanized for corrosion resistance
- Eliminates nailing into end grains
- Load rated when installed in pairs
- Maximum nailing option for increased loads
Material
- 18 gauge
Finish
- Galvanized. Some products available in ZMAX® coating or stainless steel. See Corrosion Information.
Installation
- Fill all round holes for minimum load capacity. Fill all round and all triangular holes for maximum load capacity.
- Use all specified fasteners;
- Install all models in pairs to achieve allowable loads.
