Simpson Strong-Tie Wood Conn - Bases & Caps - Post Base HBC
Non-returnable
$7.99 - $15.56

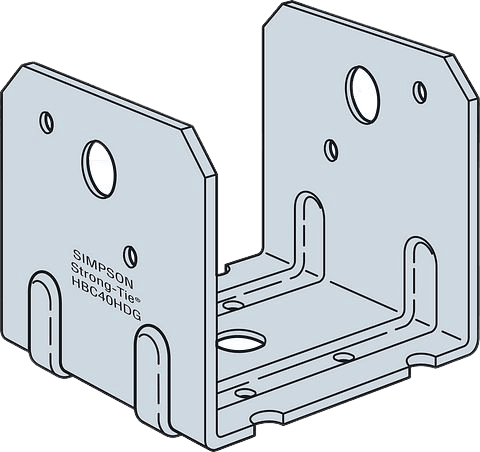

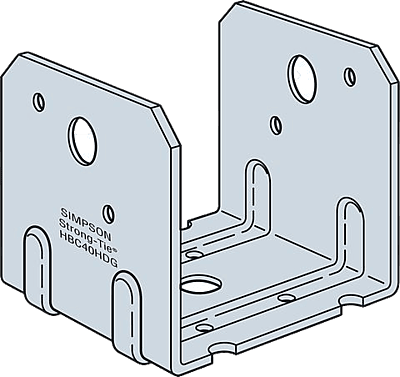

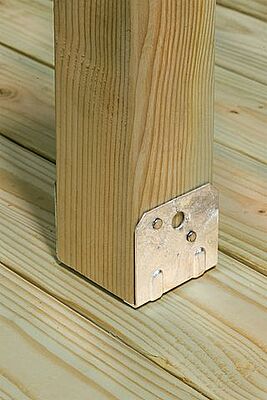

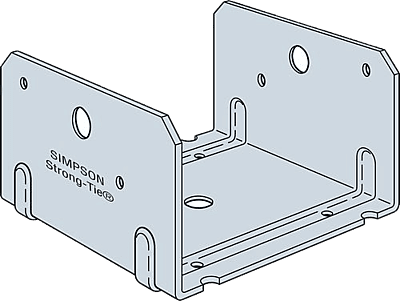

The HBC is a post-installed saddle that offers installation flexibility and strength for connecting to 4x or 6x dressed wood posts. This post base is ideal for light connections such as patio covers, deck trellises and pergolas. With a hot-dip galvanized finish, the HBC provides additional corrosion protection for outdoor projects.
Post Size
Choose Quantity
Product Details
Key Features
- Meets the intent of 9.23.6.2.1 of the National Building Code of Canada 2015 for resisting uplift and lateral movement
- Chamfered corners create a sleeker-looking product
- Available in a black-powder coat for applications that call for a more finished look
- Steel embossments provide added strength
- Drainage outlets help reduce the possibility of water accumulation that can potentially rot the post
Material
- HBC40HDG — 12ga., HBC60HDG and HBC60RHDG — 14ga.
Finish
- HDG
Installation
- Use all specified fasteners; see General Notes
- Do not install bolts into pilot holes
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports)
