Simpson Strong-Tie Strong-Drive SDWS FRAMING Screw
Non-returnable
$29.20 - $100.09

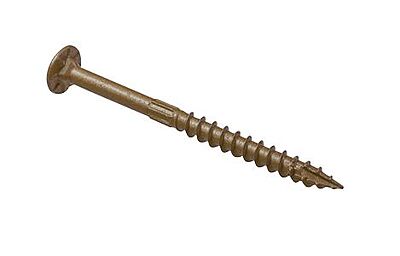

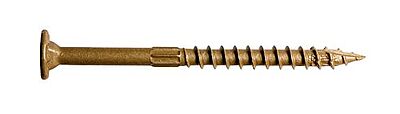

Simpson Strong-Tie Strong-Drive SDWS FRAMING Screw is designed and load-rated for replacing 16d, 10d and 8d nails in framing applications. The SDWS Framing screw is 0.160" in diameter and superior to nails in holding power and pull-out resistance. It is code listed under IAPMO UES ER-192 and meets 2015 and 2018 IRC® and IBC® code requirements for several common wood framing applications.

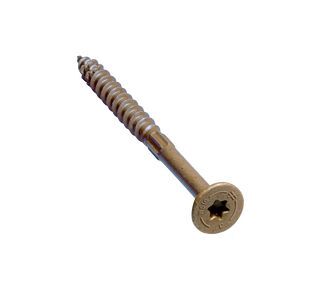

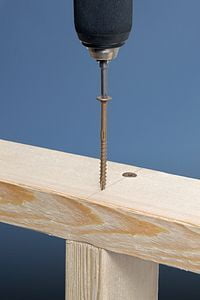

The screw has a SawTooth™ point that makes for fast installations with reduced torque without predrilling, and its specially designed head countersinks easily to provide a clean, flush finish. The T25 bit holds the 6-lobe recess tightly, reducing cam-out and head stripping.
Key Features
- Large washer head with underhead box-nibs provides increased bearing in structural applications and provides clean and easy countersinking (0.44" head dia.)

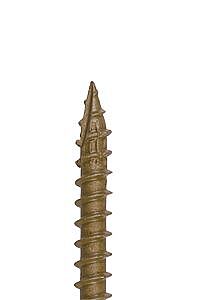

- SawTooth point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
- The 6-lobe drive provides positive bit engagement resulting in easier installations and longer bit life
- Quik Guard® coating provides protection in indoor and outdoor applications
Applications

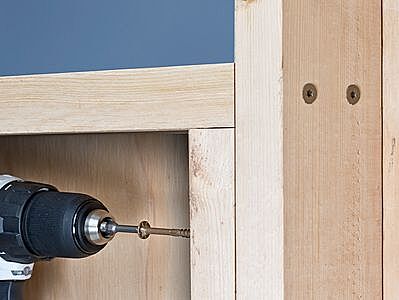

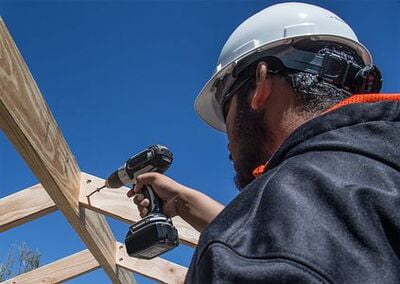

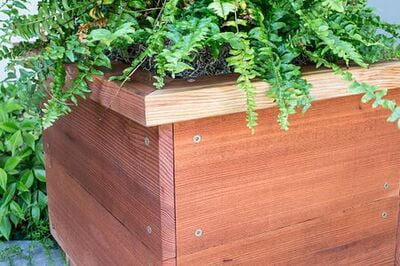

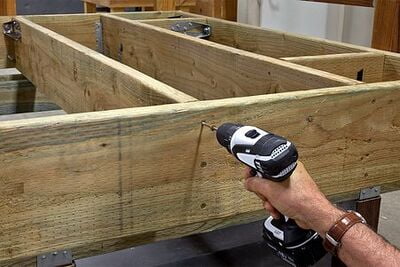

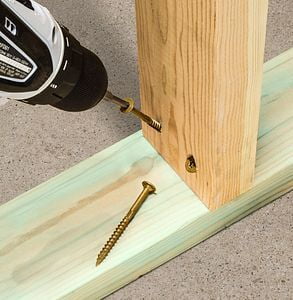

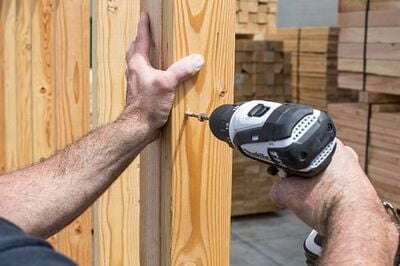

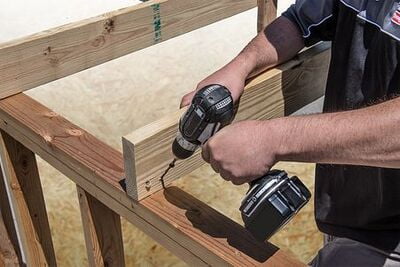

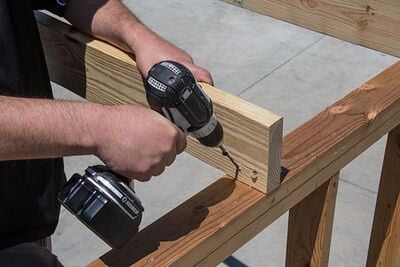

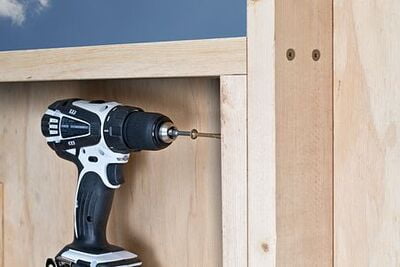

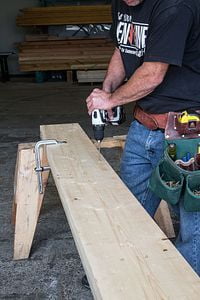

Multipurpose wood-to-wood and engineered-wood applications, including framing, indoor/outdoor projects
