Simpson Strong-Tie Knee-Brace Stabilizer
Non-returnable
$4.43

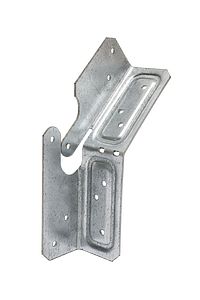

Simpson Strong-Tie Knee-Brace Stabilizer KBS1Z makes a structural connection between knee bracing and columns or beams to help stabilize free-standing structures. Factory-formed at a 45° angle and easily installed with nails, the KBS1Z braces 2x, 4x and 6x in line post-to-beam configurations. Check with your local building department for deck bracing requirements.
Material:- 16 gauge
Finish:- ZMAX® coating
Installation
For installations at an angle other than 45°, bend KBS1Z along slots to desired angle. Bend one time only.
Knee Brace:
- Cut braces at desired angle
- Bend KBS1Z to desired angle if required
- Install fasteners to secure in place

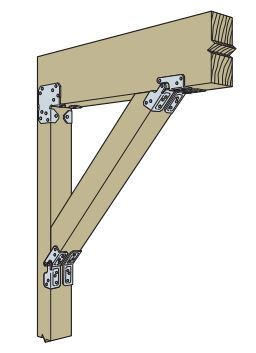

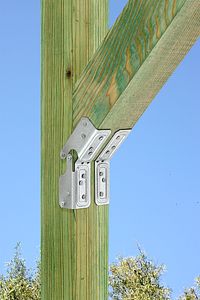

- For equal-width members, install (2) KBS1Z on each end of brace (see illustration, connection type 1)
- For 2x knee brace, install single KBS1Z on each end of brace (see illustration, connection type 2)

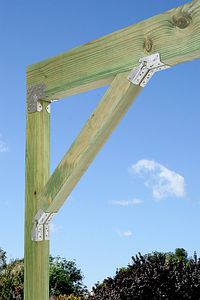

Beam-to-Post:
- Install in pairs; see illustrations for quantity and configuration
- Part used as a column cap; does not replace a knee brace
