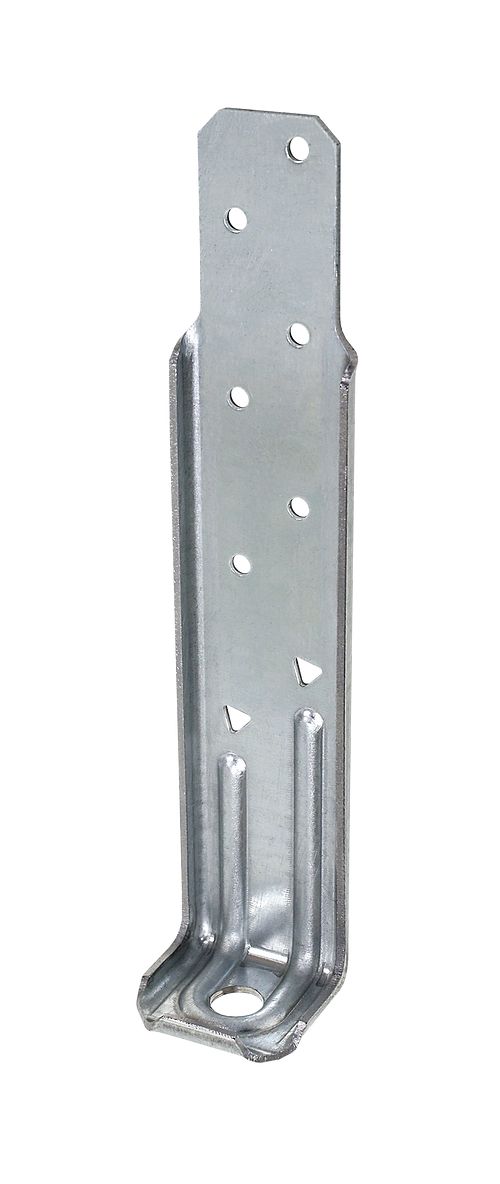

Simpson Strong-Tie DTT1Z Deck Tension Tie
Simpson Strong-Tie DTT1Z Deck Tension Tie is safe, cost-effective connector designed to meet or exceed code requirements for deck construction. These versatile connectors are also load rated as a holdown for light-duty shearwalls and braced-wall panel applications.

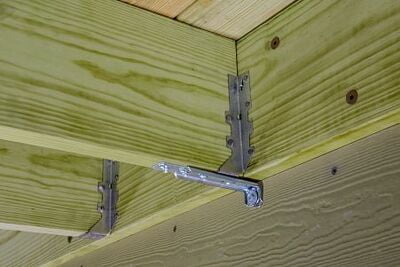

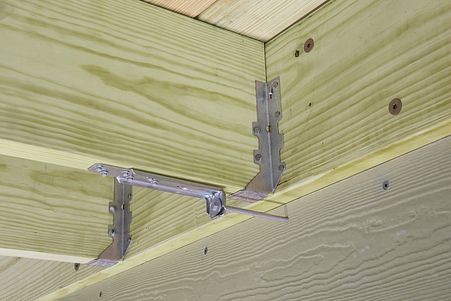

For new construction or to make an existing deck code-compliant, the DTT1Z can be used as a tension tie to satisfy the 2015 and 2018 IRC provision for a 750 lb. lateral load connection to the house at four locations per deck. This code detail permits the lateral connection from the deck joists to be made to top plates, studs or headers within the supporting structure, which eliminates the need to access to the floor joists inside the home.
The DTT1Z fastens to the narrow or wide face of a single 2x with Strong-Drive SD Connector screws or nails and accepts a 3/8" bolt, anchor bolt or lag screw (washer required) or can be installed with the Strong-Drive SDWH Timber-Hex HDG screw with an integral washer.
$4.25
