Simpson Strong-Tie BC Post Cap

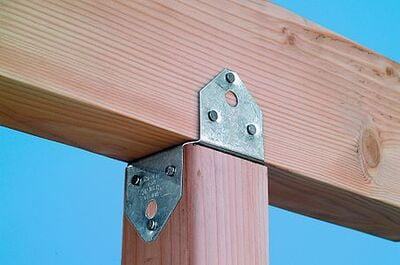

Simpson Strong-Tie BC post cap is designed to connect a beam to a post. The 18-gauge material of this post cap makes it ideal for light-duty connections. The BC post cap provides uplift and lateral resistance and includes sizes for both nominal and rough lumber.
Key Features
- Opposing flanges provide increased lateral resistance
- Attains full allowable load using either common nail or pneumatic nail sizes
- Light-gauge material designed for light-duty applications
Material
18 gauge
Finish
Galvanized. Some products available in ZMAX® coating.
Installation
- Do not install bolts into pilot holes
- Install with 0.162″ x 3 1/2″ nails or 0.162″ x 2 1/2″ nails
$9.55
