Maibec Nantucket Victorian Shingles
Non-returnable
Select Color
Maibec Nantucket Victorian Shingles (Custom order) made from Extra Clear Eastern white cedar and sold in 5" width individual shingles with 16" nominal lengths. Maibec shingles are ideal for facades and walls with multiple details such as doors, windows, skylights and corners. Shingles are sold in Boxes. Each box coveres 25 Sq.f.

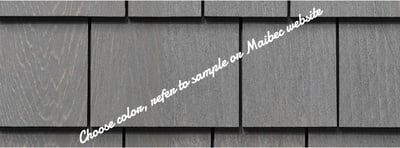

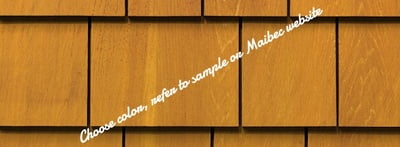

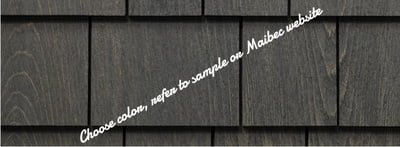

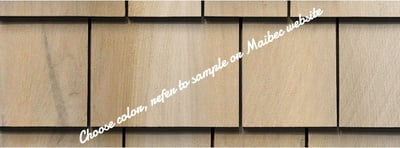

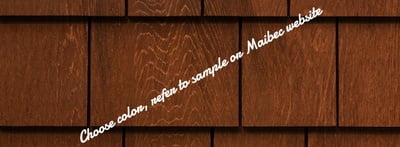

Choose color
- Natural (No finish)
- H2BO water-based bleaching stain:

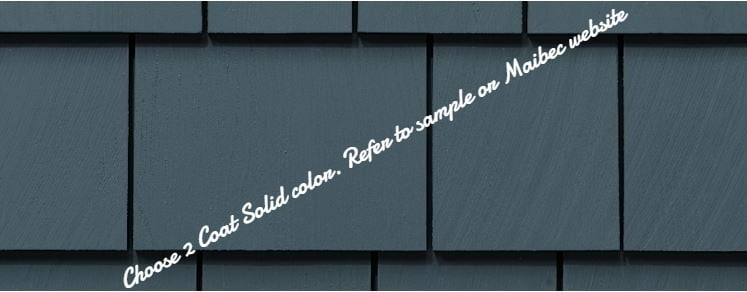

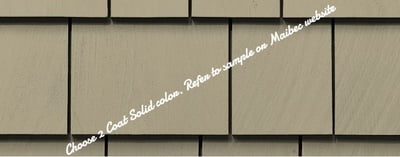

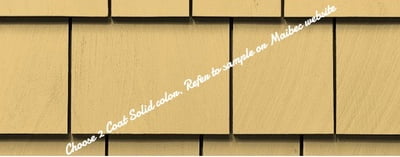

- 2 Coat Solid: Nearly 100 shades. Professionally created solid colour palettes, conveniently organized in five stunning, nature-inspired collections: Greys-Blues, Greys-Greens, Beiges-Yellows Browns-Reds and Basics (Maibec white and Maibec black)

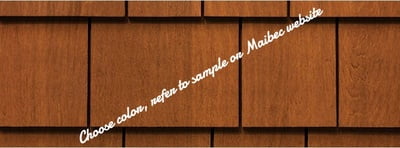

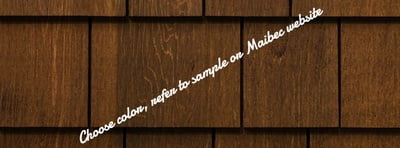

- Spice Collection: Semi-transparent colours only from Maibec. Maibec's Spice series features five rich, eye-catching colours. These late-generation stains also require less maintenance than traditional semi-transparent stains.
Factory Staining
- Every shingle is factory-coated on all sides in a controlled environment for maximum stain absorption and retention. This also provides increased protection from the damaging effects of the sun and the elements.
- Following the stain application, the shingles are sent through a state of the art drier for curing. The product of European technology, this drier cures the stain from the inside out. The shingles are then cooled down and packaged. This unique system increases the durability of the product once installed.
- Low-volatile organic compounds (VOCs) water-based stains.
- For exterior use only.
Exposure:
The exposure for shingles is 5" but can vary between 1/8" to 1/4" depending on the height of the wall and the window positions. To determine the number of courses needed and the exposure see Maibec shingles Installation guide.
How to Calculate The amount of siding needed:
Example:
Area to cover: 1,000 Sq.f.
For 5" exposure, add 3% to the area to cover 1,000 Sq.f. x 1.03 = 1,030 Sq.f.
1 box = 25 Sq.f. 1,030 Sq.f. = 41 boxes
Choose Profile:
$269.40 - $526.98
Choose Quantity
Product Details
Specifications
Installation: Please refer to Maibec's Individual Shingles Installation Guide
Factory-stained white cedar individual shingles can only be installed to exterior wall surfaces.
Fasteners:
STAPLES
- Stainless steel or aluminum staple with minimum 7/16" crown, minimum 16 gauge
- Two fasteners per shingle, regardless of its width
NAILS
- Stainless steel or hot dipped galvanized
- Ring shank blunt tip nail with minimum 7/32" head
- Two fasteners per shingle, regardless of its width
FASTENING REFERENCE LINE
Maibec shingles feature a fastening reference line found 6-1/4" from the base of the shingle. For the 5" required shingle exposure, fasten just below the reference line to respect the installation requirement.
See the Maibec Shingles installation guides to know all installation requirements.
Touch-up stain
Apply touch-up stain on all cuts, planed edges, and small damaged areas. All bare wood must be touched-up, regardless of whether it is visible or not once installed. Touch-up on cuts must be performed prior to shingle installation.
Touch-up stain is only meant to be used in the area in need of it. It must not, under any circumstance, be applied over non-damaged factory coated material.
Manufacturer's Warranty from Maibec
Warranty*-Shingles Solid Stain
50 years against wood decay
15 years on solid stain 2 coat
5 years on labour
Warranty*-Shingles "Spice" Series
50 years against wood decay
3 years on semi-transparent stain 2 coats
3 years on labour
* Some restrictions apply. See detailed warranties on Maibec website.
Maibec Shingles
- GradeNantucket (Extra Clear)
- Thickness at base of shingle3/8"
- Width5"
- Nominal length16"
- Exposure5" but can vary between 1/8" to 1/4" depending on the height of the wall and the window positions
- PackagingOne box covers 25 Sq.ft with a 5" exposure
- SpeciesEastern White Cedar – Thuya occidentalis
