in-lite Puck
Radiating light on all sides, the PUCK ground light is perfect as indication lighting along a driveway, walkway, duckboards or jetties.
This ground light is installed in a hole in wood (using a wood drill) or stone (using a water-cooled diamond drill) with a diameter of 60 mm.
Important: This fixture must be installed in a straight drill hole of the right size to ensure that it fits snugly and does not cause damage to the surface.
Handy installation cup

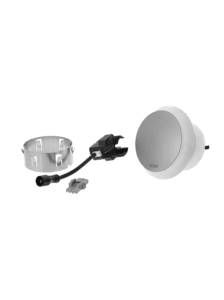

The PUCK (DARK) comes with a stainless steel installation cup. This ring makes it possible to install – and remove - the spot light easily and without connection to the power supply. You simply press the spot light together with the cup into the hole. No hammer needed. The springy tabs on the cup make sure the spot is always installed snugly. The stainless steel installation cup is not available separately and cannot be used (yet) with the other fixtures.
The PUCK ground light is perfect as indication lighting along your driveway, walkway, duckboards or jetties. Since the light radiates from the side, it is visible from a long distance, but without being glaring, making the PUCK also highly suitable for creating ambiance. The PUCK is made of anodized aluminum in warm silver. The PUCK series is available in two different formats and colors: PUCK (DARK) has a diameter of 60 mm, while PUCK 22 (DARK) has a diameter of 22 mm.
Product information Dimensions:
- Height58 mm | 2.28 in
- Diameter86/60 mm | 3.39/2.36 in
- Mounting depth55 mm | 2.17 in
Materials & finish:
- HousingPolycarbonate
- LensPolycarbonate
- ColorWarm silver
- Ring/cover plateAluminum
Technical specifications:
- Voltage12Vs
- Power1,50W
- Electric potential2,50VA
- Light sourceLED
- Burn time25000
- Light typeDiffuse
- Light angle180°
- Light distribution0.25m | 9.8 in
- Light colorWarm white
- Lighting directionAmbient
- Color temperature2900K
- CRI96
- Net luminous flux11lm
- Luminous efficacy7lm/W
- DimmableNo
- IP classIP-67
- Energy labelB
