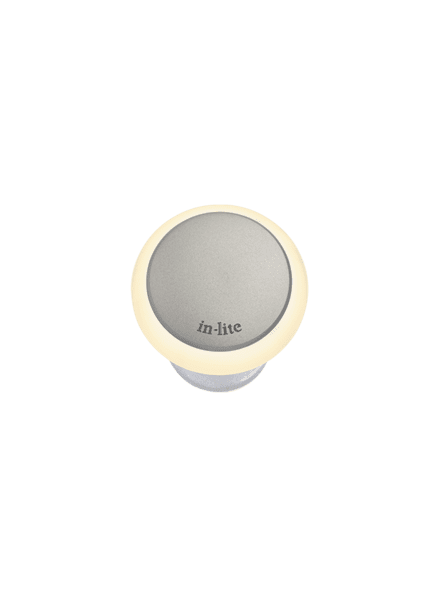

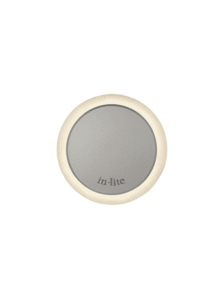

in-lite Puck 22
This small ground light in warm silver is perfect as subtle indication lighting for along your driveway, walkway, duckboards or jetty.
This ground light is installed in a hole in wood (using a wood drill) or stone (using a water-cooled diamond drill) with a diameter of 22 mm.
Important: This fixture must be installed in a straight drill hole of the right size to ensure that it fits snugly and does not cause damage to the surface.
Handy tapping plate

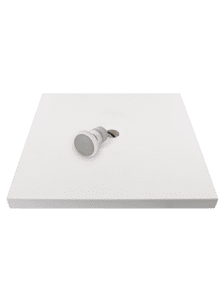

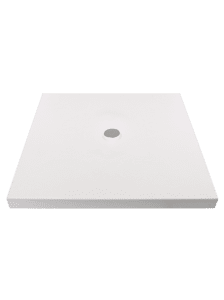

The PUCK 22 (DARK) comes with a tapping plate (60x60x5 mm). This plate is used during installation to prevent damage to the anodized cap.
The PUCK 22 small ground light is perfect as subtle indication lighting for along your driveway, walkway, duckboards or jetty. The PUCK 22 has a diameter of 22 mm and an anodized aluminum cap in rosé silver. The light radiates from the ground lights on the side, making it visible from a long distance. The non-glaring light also makes the PUCK 22 perfect for creating ambiance. The PUCK series is available in two different formats and colors: PUCK (DARK) has a diameter of 60 mm, while PUCK 22 (DARK) has a diameter of 22 mm.
Product information Dimensions:
- Height43 mm | 1.69 in
- Diameter35/22 mm | 1.38/0.87 in
- Mounting depth55 mm | 2.17 in
Materials & finish:
- HousingPolycarbonate
- LensPolycarbonate
- ColorWarm silver
- Ring/cover plateAluminum
Technical specifications:
- Voltage12Vs
- Power0,50W
- Electric potential0,50VA
- Light sourceLED
- Burn time25000
- Light typeDiffuse
- Light angle180°
- Light distribution0.25m | 9.8 in
- Light colorWarm white
- Lighting directionAmbient
- Color temperature2900K
- CRI96
- Net luminous flux3lm
- Luminous efficacy5lm/W
- DimmableNo
- IP classIP-67
- Energy labelB
