in-lite Move

Name: in-lite Move
Brand: in-lite
SKU: 10500705
Price: 95.2 CAD
Availability: InStock

Non-returnable

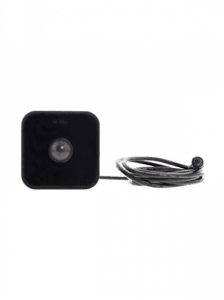

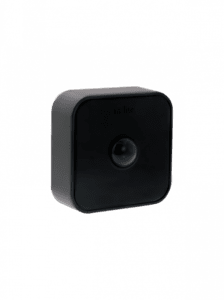

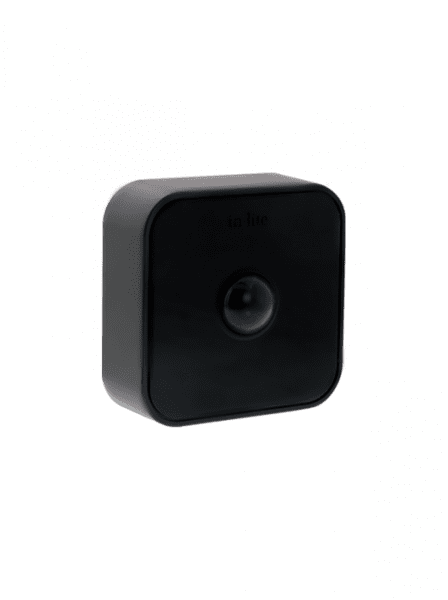

in-lite MOVE

High-quality motion detector for use with the HUB-50 & HUB-100 transformers.

Wired motion detector for HUB-50 and HUB-100
Detects up to 12 meters
Adjustable for 1, 3 or 9 minutes

Installation advice:

Place the MOVE flat against a hard surface at a height of 1.8 to 2 meters

$95.20

Shipping & Availability

Same day pick-up or 2 days ready for shipping

_productIds

980609000008615449

Order Type

This is a SPECIAL ORDER item

Product Name

Move

Ref #

Collection_ID

980609000063667232_12000,

Choose Quantity

Add to Cart. . .

Product Details

Specifications

DETAILS

MOVE detects movement up to 12 meters at an vertical angle of 40 degrees and horizontal angle of 105 degrees.

Features the following functions and properties:

Lighting switches on for 1, 3 or 9 minutes
Operated with the ‘Motion Detection' button on the transformer
Easy to connect to the transformer using an RCA connector
Equipped with a two-meter cable that can be extended to 20 meters using the MOVE EXT-CORD 5MTR (available separately)

INSTALLATION INSTRUCTIONS AND DOWNLOADS

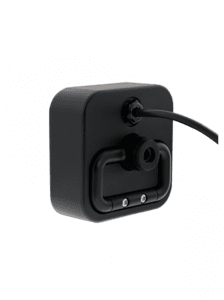

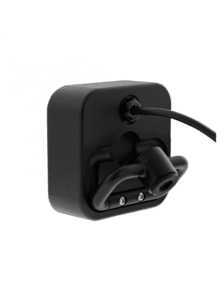

Install vertically using the screws provided. Easy to connect to the transformer using an RCA connector. The various functions of the motion detector are set on the transformer itself. You can also adjust the direction of the motion detector downwards following installation.

MOVE is equipped with a two-meter cable. This cable can be extended to up to 20 meters using the MOVE EXT-CORD 5 MTR (available separately).

See the manual for detailed instructions. For instructions on installing our system and fixtures, watch the instruction videos on the Installation Tips page.

Download Manual

Product information Dimensions:

Length
80 mm | 3.15 in
Width
80 mm | 3.15 in
Height
45 mm | 1.77 in

Technical specifications:

Drive-over
No
