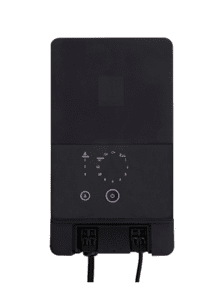

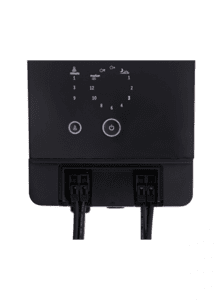

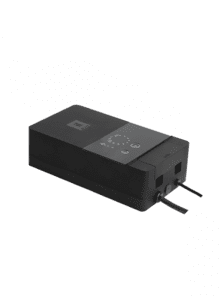

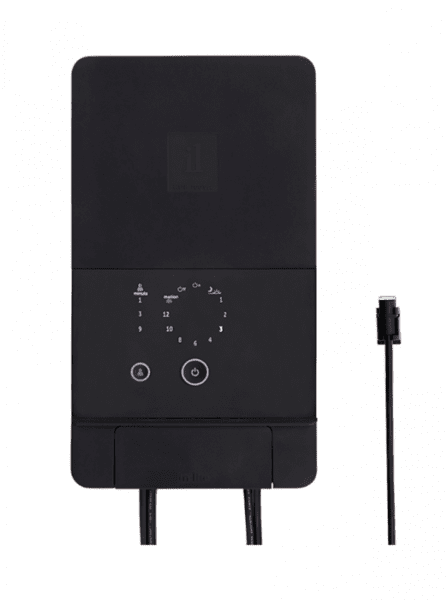

in-lite HUB

A high-quality transformer with touch screen operation and maximum installation value of 50 VA or 100 VA equipped with two lines that are controlled jointly.

Maximum installation value of 50 VA or 100 VA
Fitted with a touchscreen, 2 cable outlets and a light sensor
Expandable with motion detector

Installation advice:

Install the HUB-50 and HUB-100 where it is not exposed to rain or snowfall

$258.40

Shipping & Availability

Same day pick-up or 2 days ready for shipping

_productIds

980609000007348273

Order Type

This is a SPECIAL ORDER item

Product Name

HUB-100W

Description

Ref #

Collection_ID

980609000063667232_9000,

Choose Quantity

Add to Cart. . .

Product Details

Specifications

DETAILS

Features the following functions:

Easy touch screen operation
Two jointly controlled cable entries
Manual On and Off commands
Switched on using light sensor (included) combined with timer (included)
Equipped with light signal to detect and prevent overload or incorrect installation
MOVE motion detector available as a separate accessory. Lighting switches on automatically for 1, 3 or 9 minutes after motion detection

Innovation is part of the in-lite DNA. The HUB series is synonymous with innovative and modern products made of high-quality materials offering optimum safety.

INSTALLATION INSTRUCTIONS AND DOWNLOADS

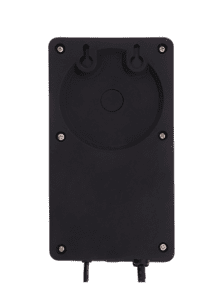

nstall vertically using the screws provided. The transformer can be mounted on a wall both inside and outside. When installed outside, the transformer must be at least 50 cm from the ground.

See the manual for detailed instructions. For instructions on installing our system and fixtures, watch the instruction videos on the Installation Tips page.

Download manual

Product information Dimensions:

Length
225 mm | 8.86 in
Width
125 mm | 4.92 in
Height
67 mm | 2.64 in

Technical specifications:

Voltage
100-230V
Power
50W or 100W - based on model
Drive-over
No
