in-lite Fusion 22
The FUSION 22 fixture is small, but refined. This subtle 22 mm diameter fixture is virtually invisible during the day.
Uses: Path, Deck
Installing ground lights: Concrete, Lawn, Natural stone, Wood

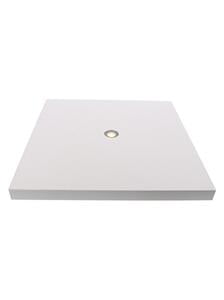

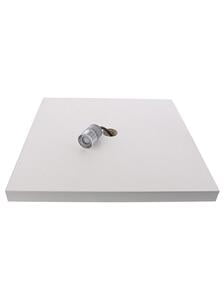

This ground light is installed in a 22.4 mm diameter hole in stone (cooled diamond-tipped drill). When installing in wood, we recommend using the FUSION 22 stainless steel.
Note: to avoid problems with the electronics, only install the fixture in a hole that has been drilled straight and in the correct size.
Shipping & AvailabilitySame day pick-up or 2 days ready for shipping
The FUSION 22 fixture is small, but refined. This subtle 22 mm diameter fixture is virtually invisible during the day. It produces a soft non-blinding light in the evening. This makes the FUSION 22 suitable for in, for example, paths, steps and decks.
Product information Dimensions:
- Height32 mm | 1.26 in
- Diameter22 mm |0.87 in
- Mounting depth50 mm | 1.97 in
Materials & finish:
- Electric potential0,20VA
- Light sourceLED
- Burn time25000
- Light typeDiffuse
- Light angle96°
- Light distribution0.25mtr | 0.50ft
- Light colorWarm white
- Lighting directionUpwards
- Color temperature2750K
- Net luminous flux1lm
- Luminous efficacy5lm/W
- IP classIP-67
- Energy labelA+
