in-lite Big Nero Narrow
Non-returnable
$283.23

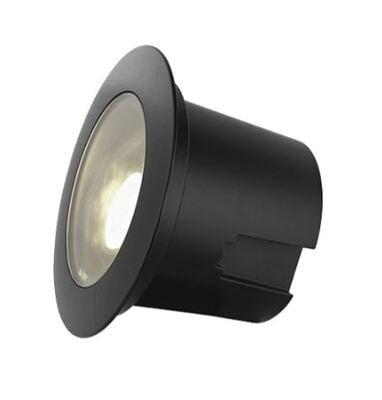

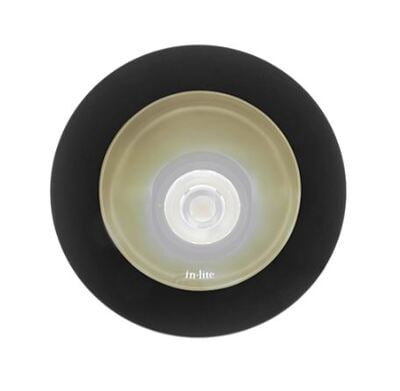

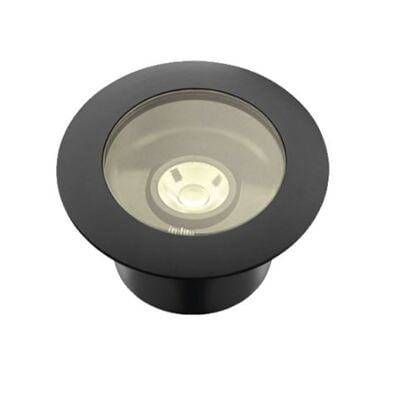

in-lite BIG NERO NARROW LED ground light is the perfect fixture for illuminating tall trees or walls from gravel, grass, pavement or wood.
- Produces a strong and narrow, focused light
- Designed for illuminating tall elements up to 14 meters
- Fitted with in-lite motion
Installation advice:

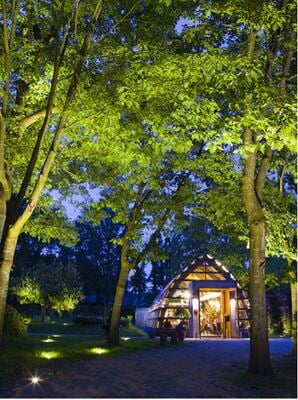

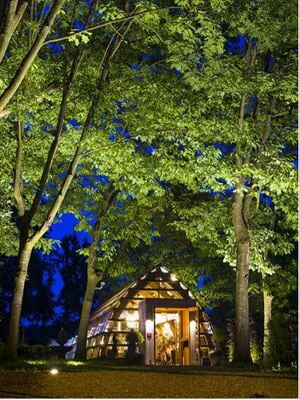

3 BIG NERO NARROW several meters away from the trunk, aimed at the top
Shipping & Availability
5 Business days lead time to get product ready for shipping or pick-up _productIds
980609000013339222,980609000013293361,980609000008615449 Order Type
This is a SPECIAL ORDER item Product Name
Big Nero Narrow Description
LED Ref #
10 Collection_ID
980609000063543134_23000, Choose Quantity
Product Details
Specifications

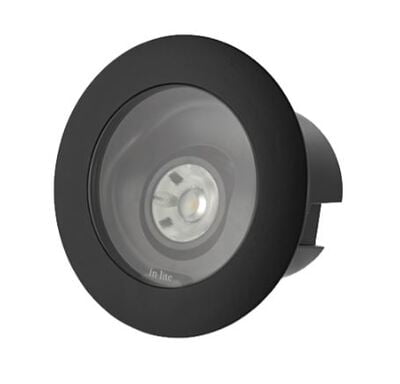

With its new single-chip LED and world-leading LEDiL® lens, the BIG NERO NARROW has a light distribution of at least 14 meters, with a light angle of 18 degrees.

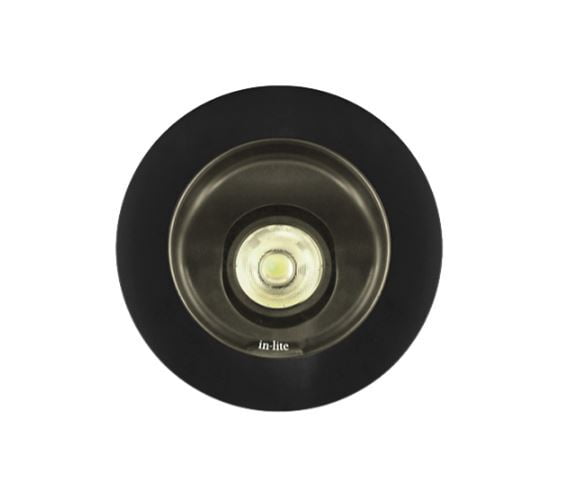

The BIG NERO NARROW features the new in-lite Motion technology. This technology makes it extremely easy to adjust the light source without having to open the fixture. Simply hold the magnet provided up to the in-light logo and the light source will tilt automatically.

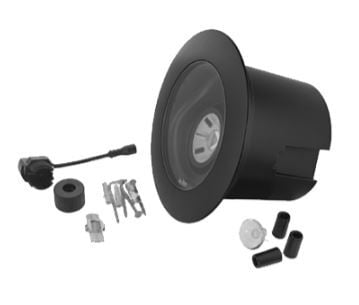

INSTALLATION INSTRUCTIONS

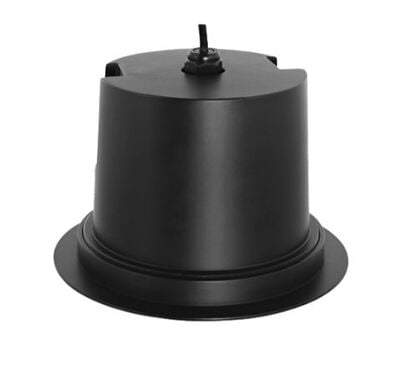

The BIG NERO NARROW can be buried or integrated into various types of concrete products, natural stone and wood. This requires drilling a 142 mm hole. For anyone who will incorporate the new BIG NERO (NARROW) in a lighting plan, the following applies: always use the 10/2 cable, use the maximum cable length of 40 meters and do not exceed the maximum number of luminaires. (HUB-50 up to four BIG NERO (NARROW) fixtures and HUB-100 up to seven and SMART HUB-150 up to eleven, up to seven in a line.)
If the new BIG NERO or BIG NERO NARROW is included in a lighting plan, the following guidelines must be followed: Always use the 10/2 cable, do not exceed the maximum cable length of 40 meters or the number of fixtures (HUB-50 for up to four BIG NERO or BIG NERO NARROW fixtures and up to seven with the HUB-100).
If the new BIG NERO or BIG NERO NARROW is included in a lighting plan, the following guidelines must be followed: Always use the 10/2 cable, do not exceed the maximum cable length of 40 meters or the number of fixtures (HUB-50 for up to four BIG NERO or BIG NERO NARROW fixtures and up to seven with the HUB-100).
Application & Processing
- ApplicationHouse, Tree
- ProcessingConcrete, Grass, Gravel, Natural stone, Soil, Wood
Product information Dimensions:
- Height123 mm | 4.84 in
- Diameter170 mm | 6.7 in
- Mounting depth130 mm | 5.12 in
- Mounting diameter142 mm | 5.59 in
Materials & finish:
- HousingAluminum
- Ring/cover plateAluminum
Technical specifications:
- Voltage12V
- Power7.5W
- Electric potential11,90VA
- Light sourceLED
- Burn time25000
- Light distribution14 m | 45.93 ft
- Lighting directionUpwards
- Color temperature3100K
- CRI91
- Net luminous flux476lm
- Luminous efficacy63lm/W
- DimmableYes
- IP classIP-67
- Energy labelA
