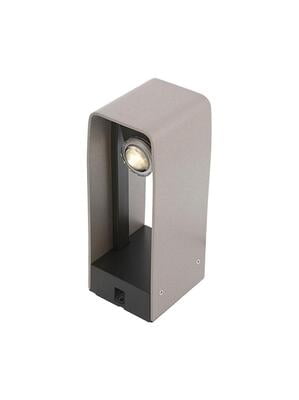

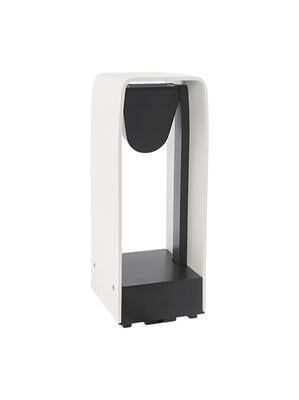

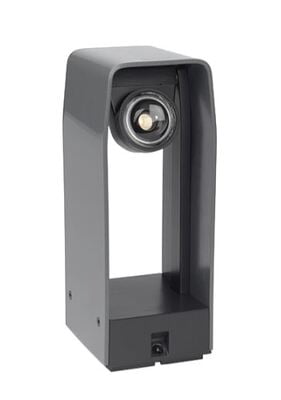

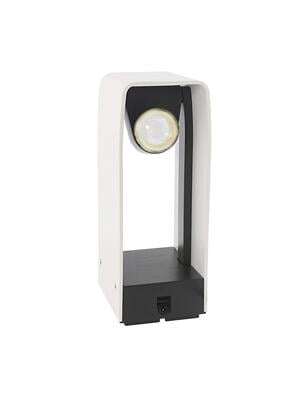

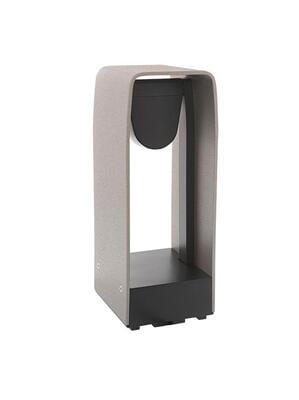

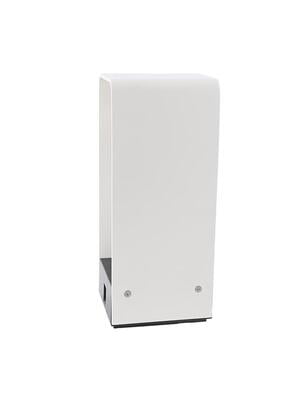

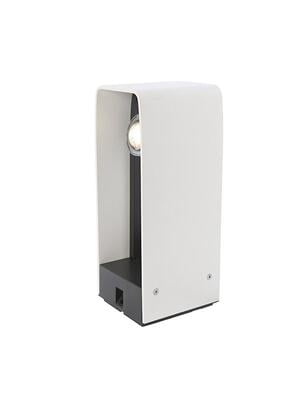

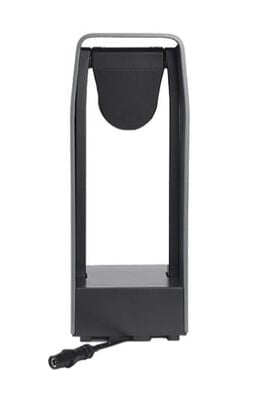

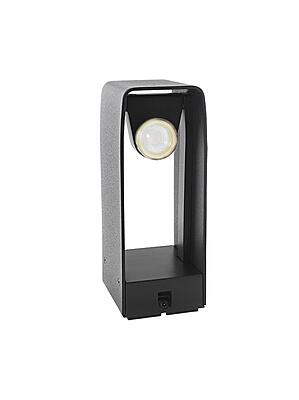

in-lite ACE

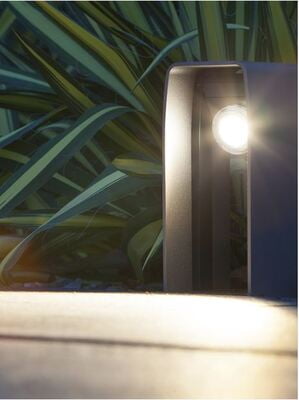

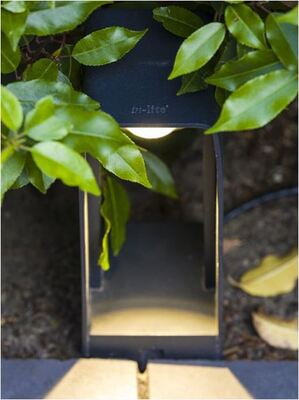

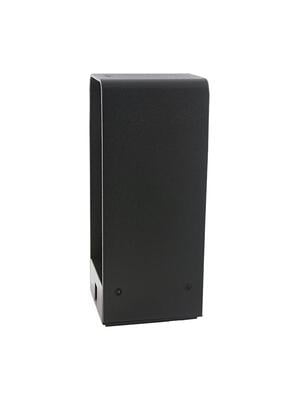

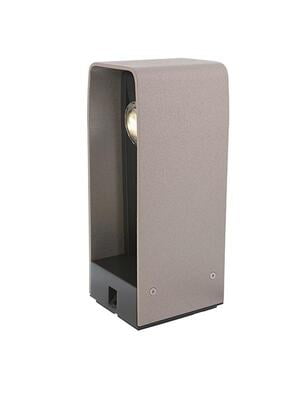

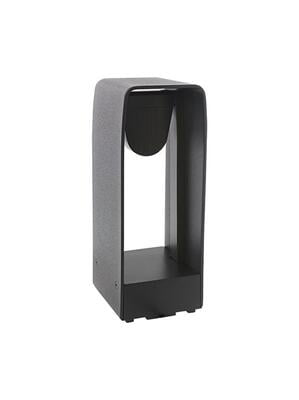

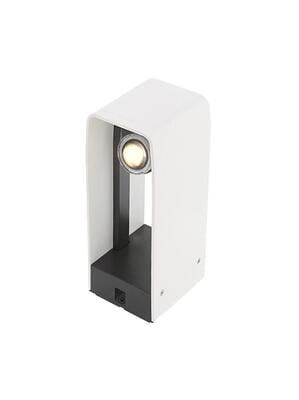

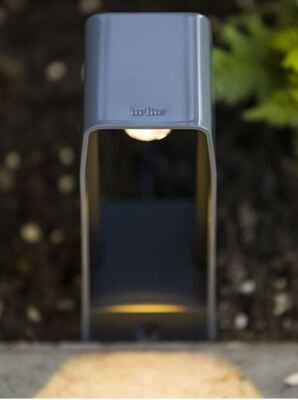

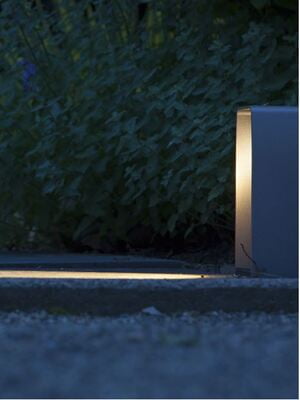

in-lite ACE bollard provides a soft light that can be used to illuminate a path or driveway.
- Produces an attractive soft light

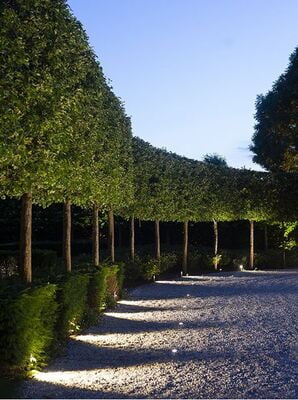

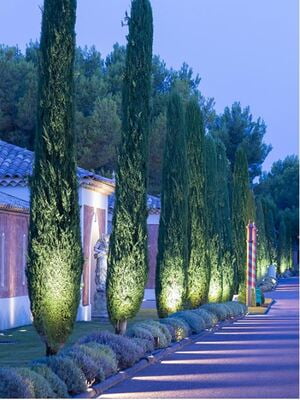

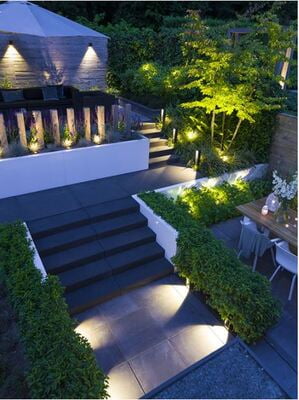

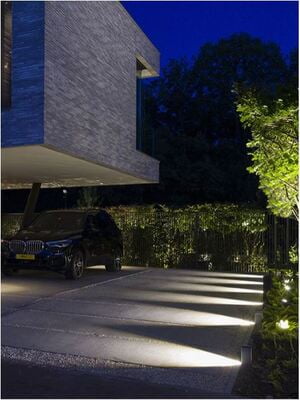

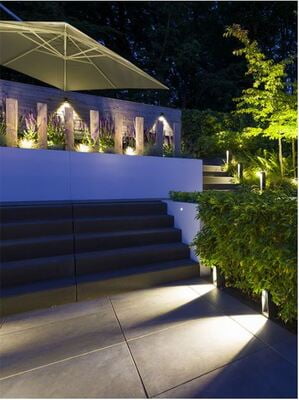

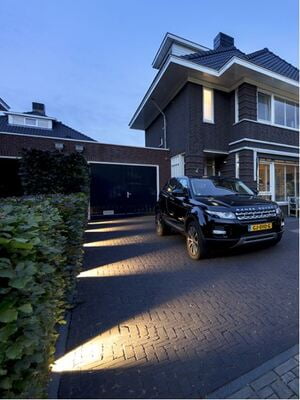

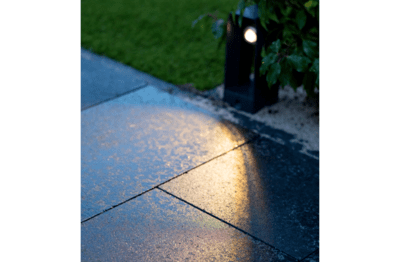

- Designed for illuminating a driveway or walkway
- Tilting light source

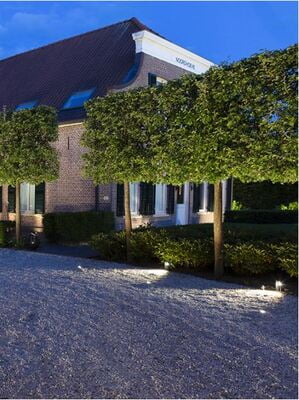

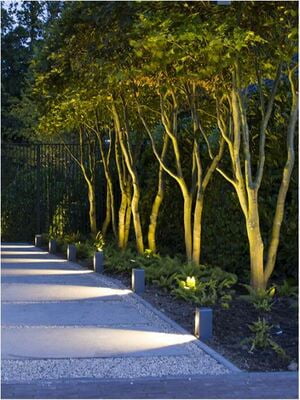

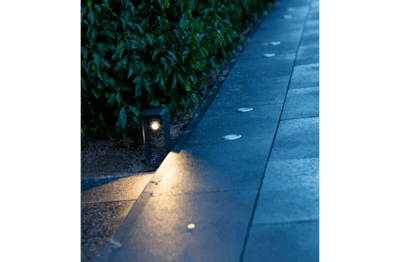

An ACE every 2 to 3 meters
th or driveway.

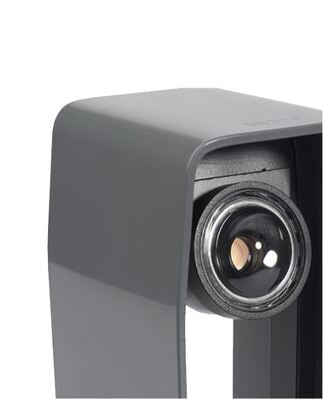

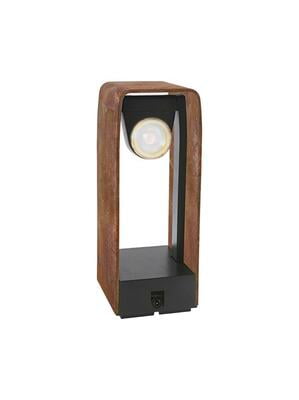

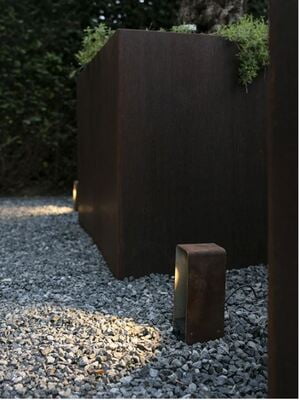

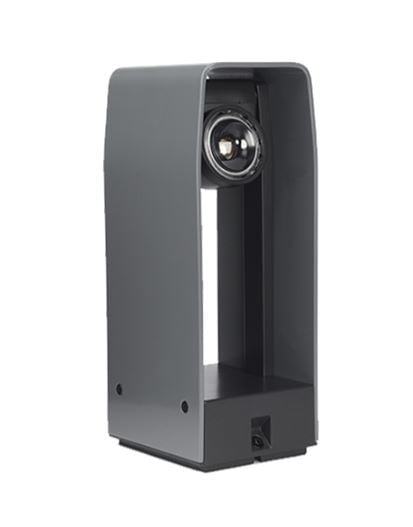

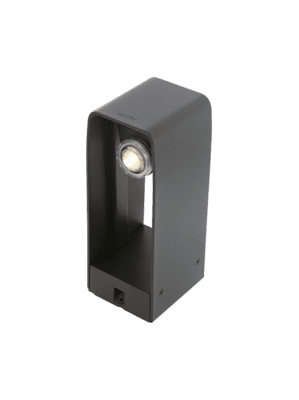

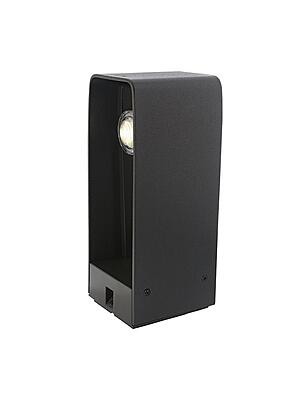

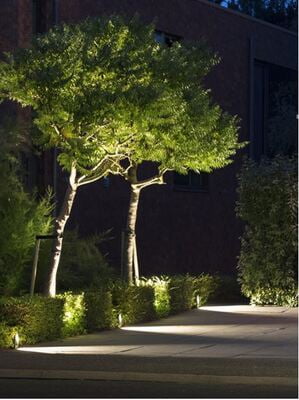

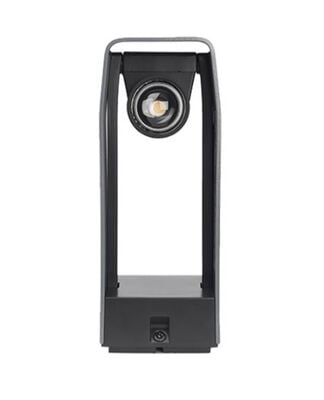

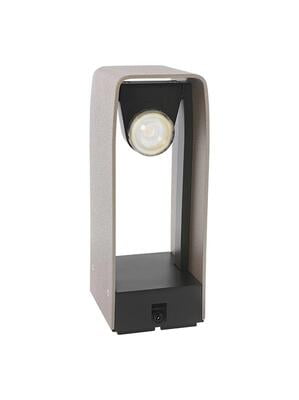

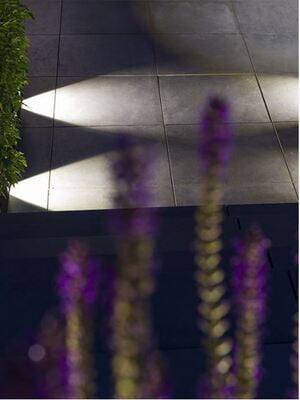

The ACE bollard provides a soft light that can be used to illuminate a path or driveway. The light source in the fixture can be tilted. This makes the ACE perfect for highlighting a border, fence or other specific yard features.
___________________________________

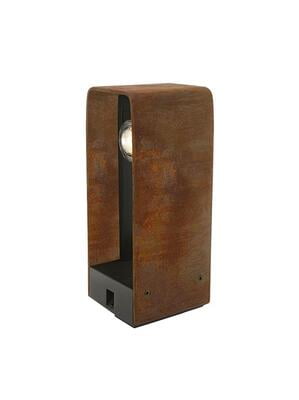

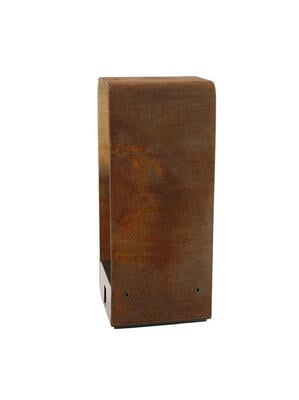

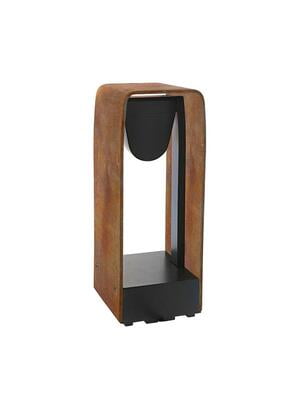

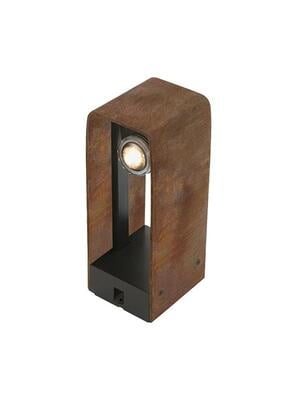

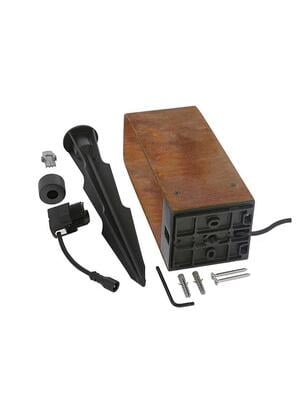

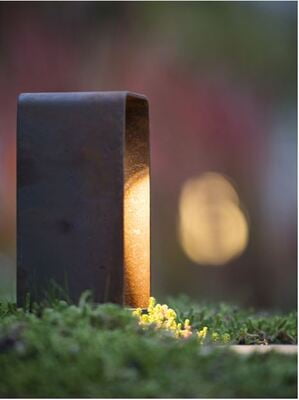

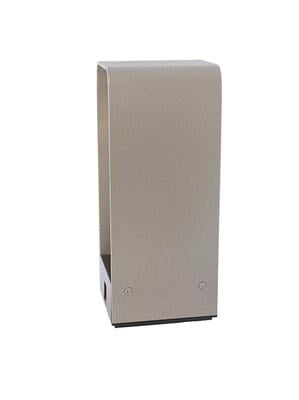

The special finish on the Corten products is achieved through a manual process of coating, sanding, acidifying and rinsing. This makes every in-lite Corten fixture unique and may cause differences between the various products in terms of color, texture and appearance.

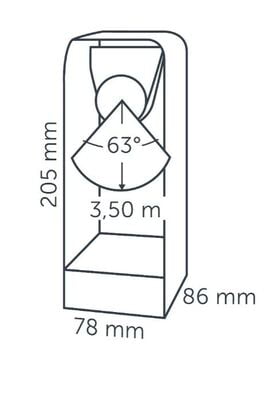

Product information Dimensions:
- Length86 mm | 3.39 in
- Width78 mm | 3.07 in
- Height205 mm | 8.07 in
Materials & finish:
- HousingAluminum
- LensPolycarbonate
Technical specifications:
- Voltage12Vs
- Power3W
- Electric potential5,30VA
- Light sourceLED
- Burn time25000
- Light typeDirect
- Light angle63°
- Light distribution3.50mtr | 12ft
- Light colorWarm white
- Lighting directionAdjustable
- Color temperature3000K
- CRI91
- Net luminous flux173lm
- Luminous efficacy58lm/W
- DimmableNo
- IP classIP-55
- Energy labelA+
