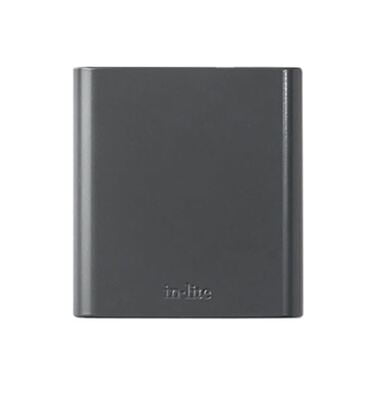

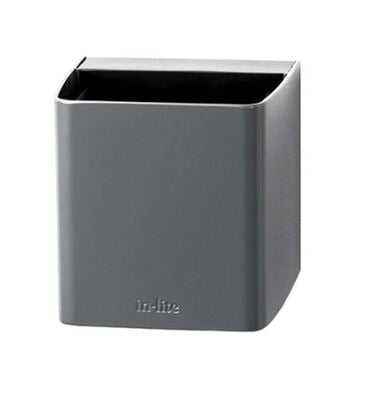

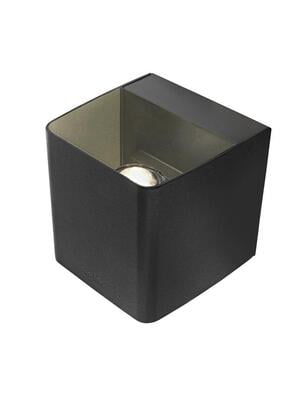

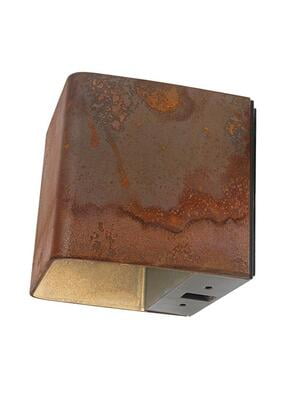

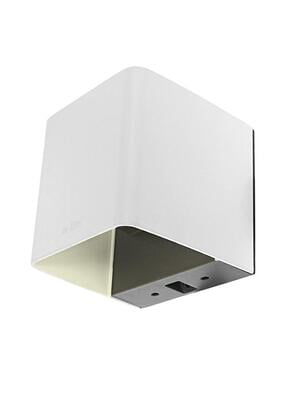

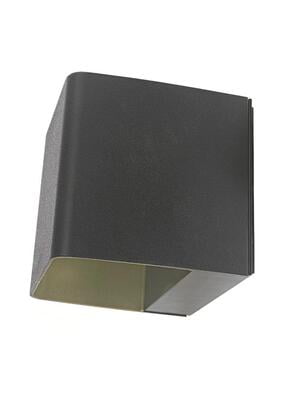

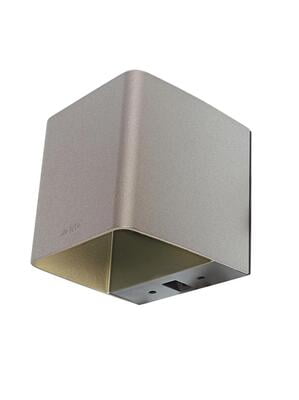

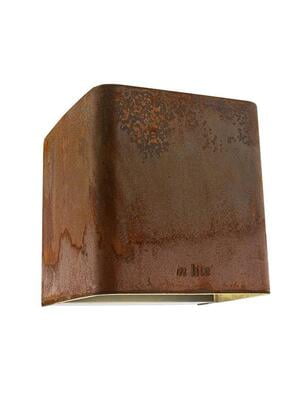

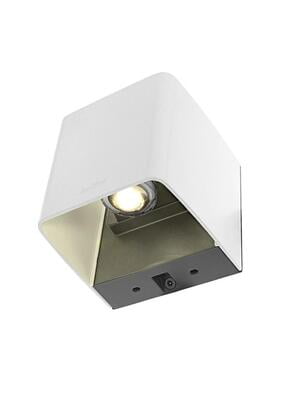

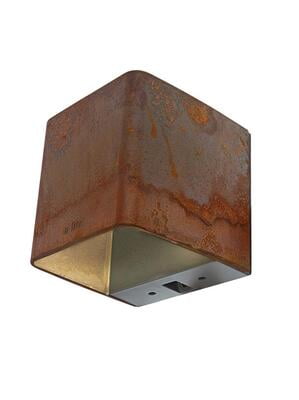

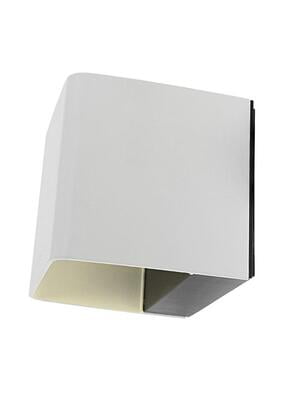

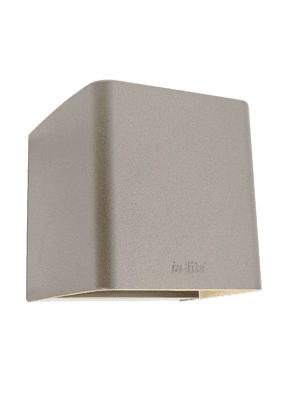

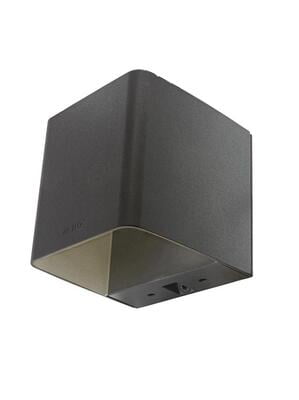

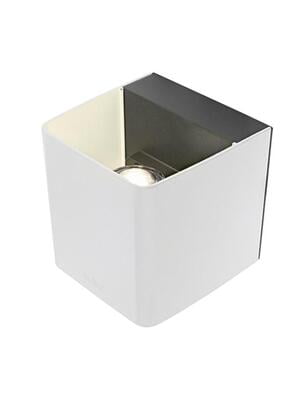

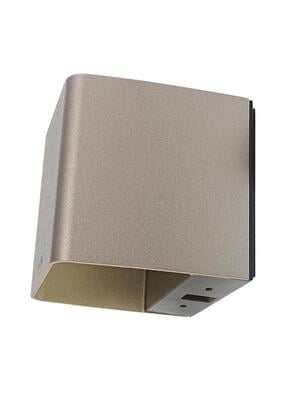

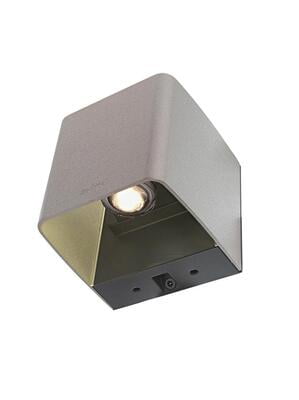

in-lite Ace up-down 100-230V
Non-returnable
$225.23 - $299.46

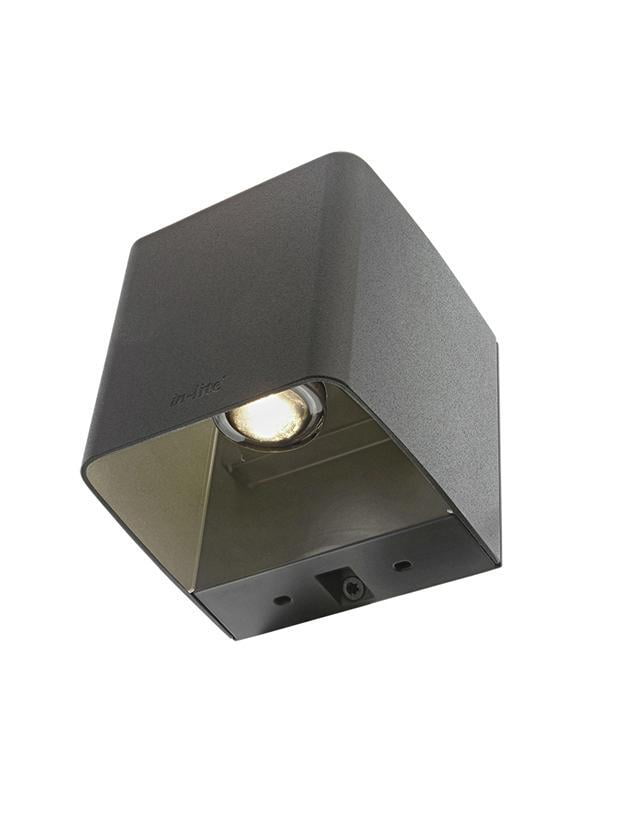

in-lite ACE UP-DOWN 100-230V DARK wall light may only be connected to line voltage.

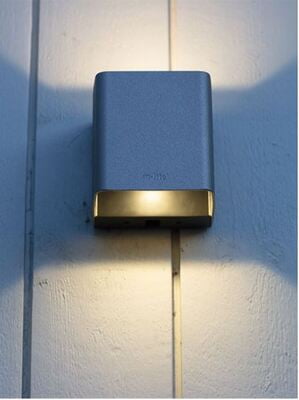

- Produces a focused upward and downward light

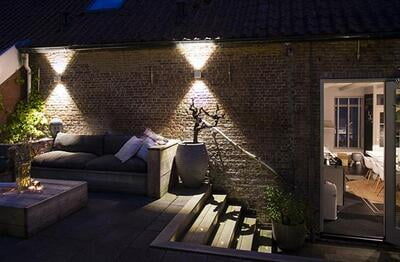

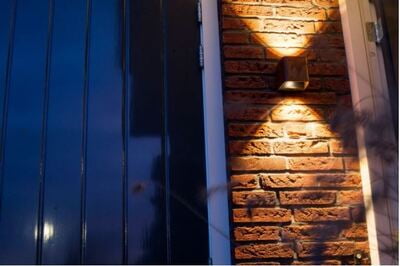

- Designed for illuminating an outside wall
- Connects directly to 230 volt
Installation advice:

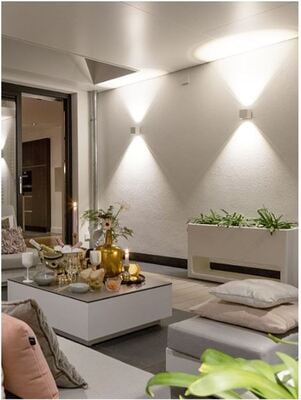

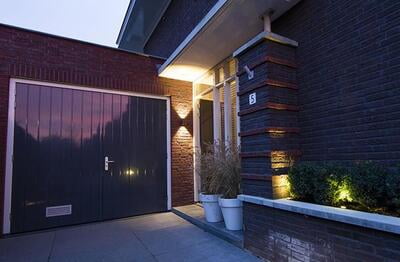

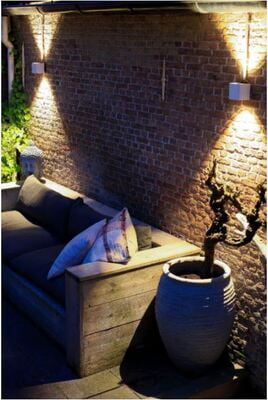

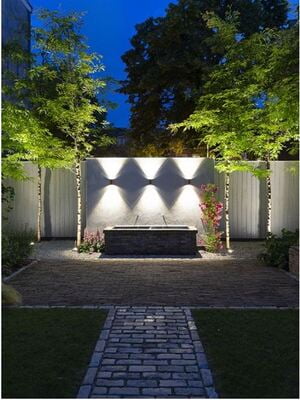

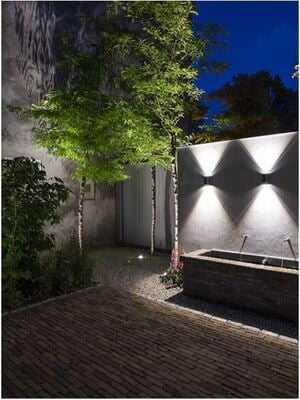

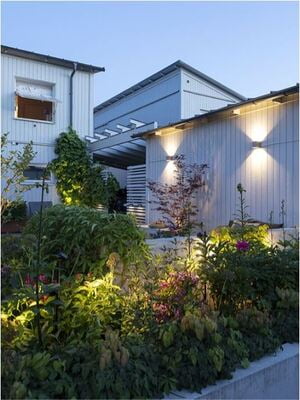

An ACE UP DOWN 100-230 V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

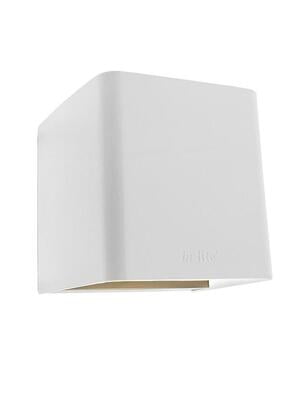

Color
Choose Quantity
Product Details
Specifications

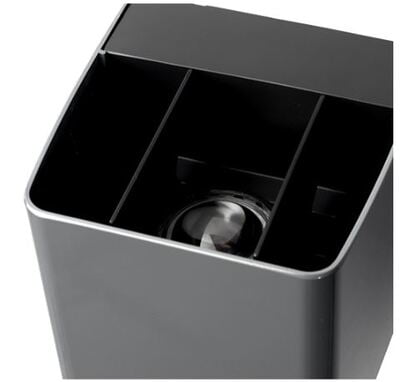

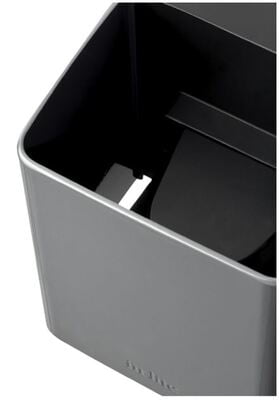

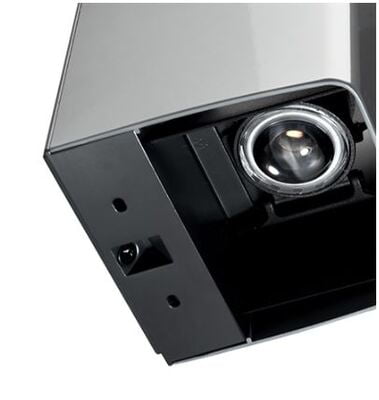

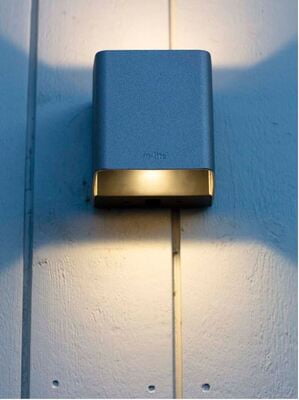

The ACE UP-DOWN 100-230V wall light may only be connected to line voltage. The fixture is therefore suitable for mounting on a house, garage or shed. The fixture provides a focused beam of light both upwards and downwards. The width of the light bundles provided by the ACE UP-DOWN can be adjusted using the separately available SHUTTER 1.

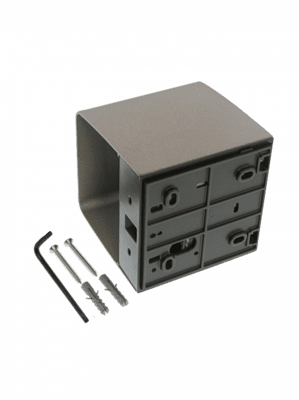

INSTALLATION INSTRUCTIONS

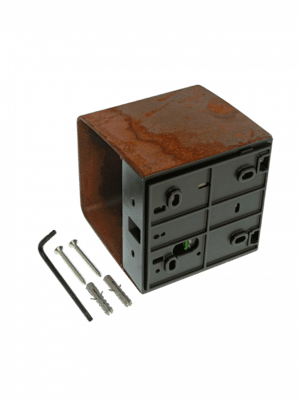

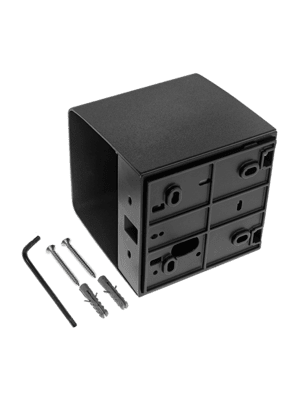

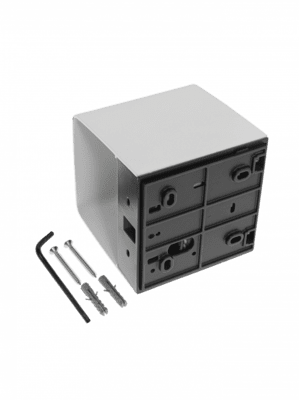

The ACE UP-DOWN 100-230V wall fixture may only be connected to a 230V power supply. Follow the instructions in the manual and the special installation leaflet*.
*ACE UP-DOWN 100-230V may only be installed by a licensed electrical contractor.
*ACE UP-DOWN 100-230V may only be installed by a licensed electrical contractor.
Product information Dimensions:
- Length103 mm | 4.06 in
- Width100 mm | 3.94 in
- Height100 mm | 3.94 in
Materials & finish:
- HousingAluminum
- LensPolycarbonate
Technical specifications:
- Voltage100-230Vs
- Power8,50W
- Electric potential20VA
- Light sourceLED
- Burn time25000
- Light typeDirect
- Light angle64°
- Light distribution3.50mtr | 12ft
- Light colorWarm white
- Lighting directionDownwards / Upwards
- Color temperature3000K
- CRI92
- Net luminous flux346lm
- Luminous efficacy41lm/W
- DimmableNo
- IP classIP-55
- Energy labelA
