in-lite Ace down
Non-returnable
Select Style

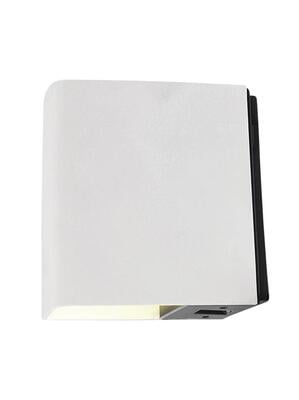

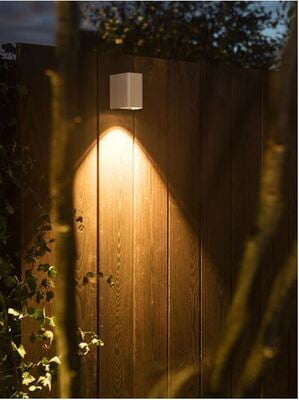

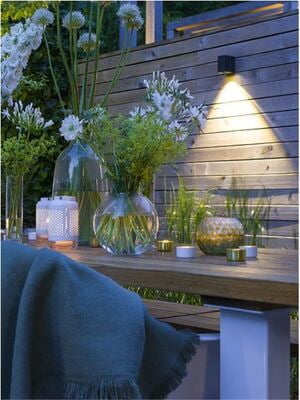

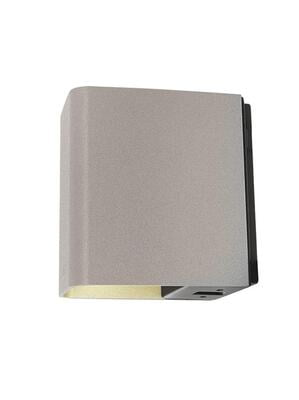

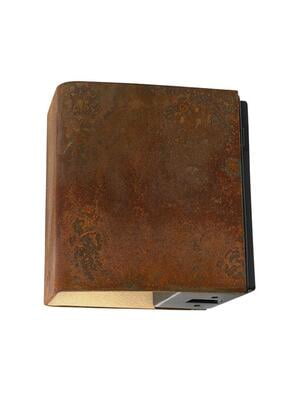

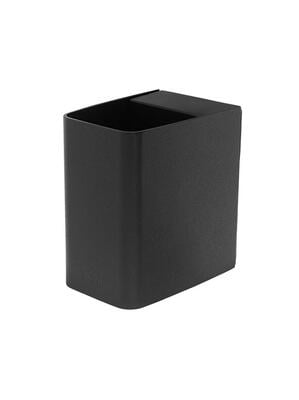

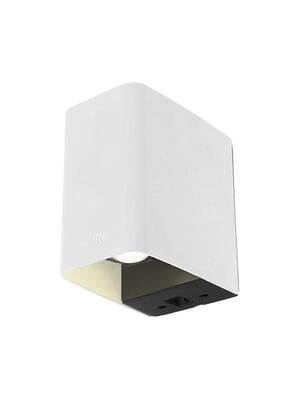

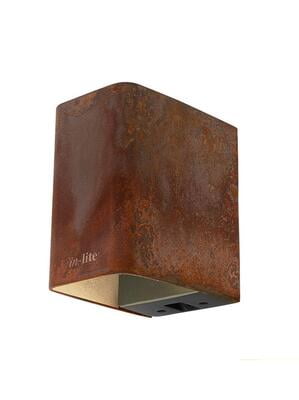

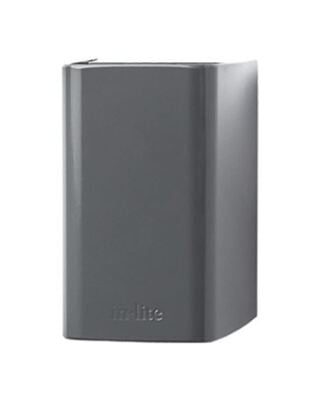

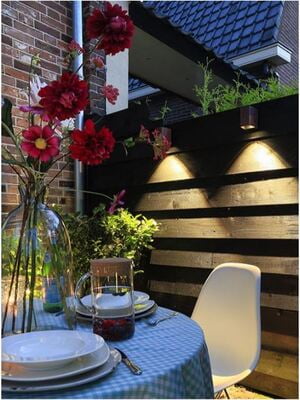

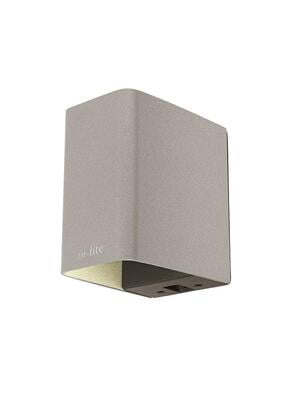

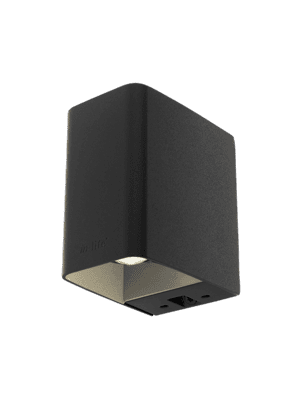

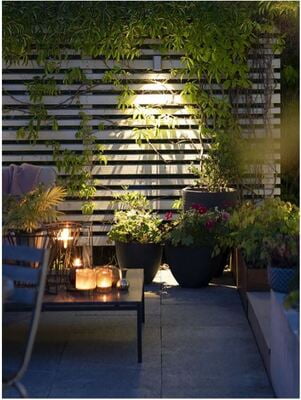

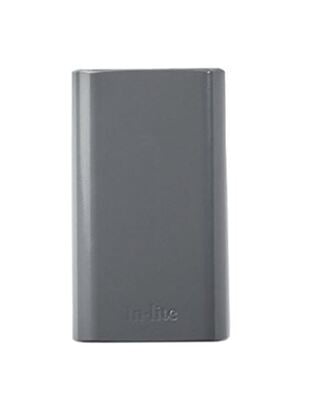

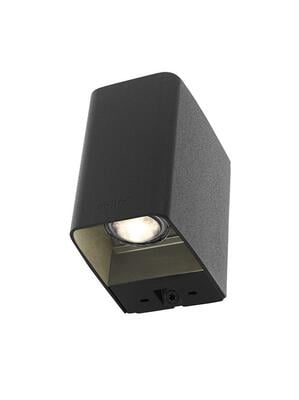

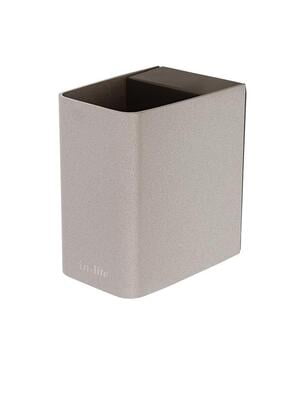

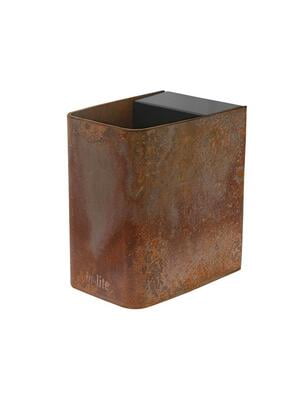

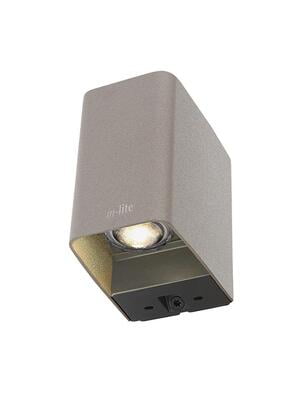

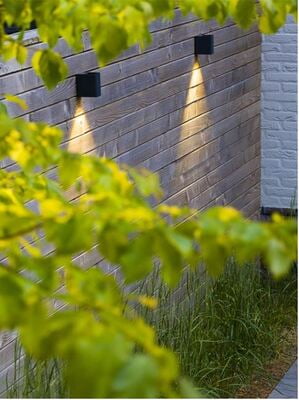

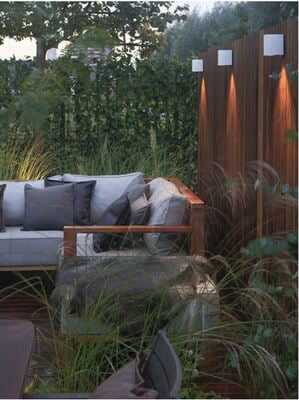

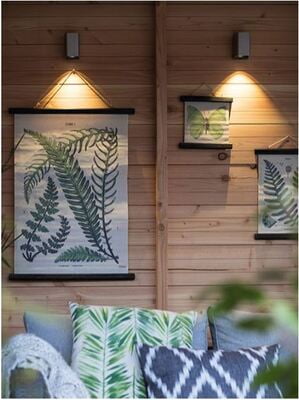

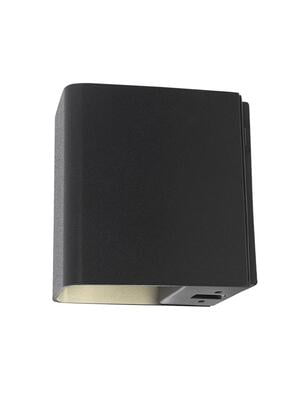

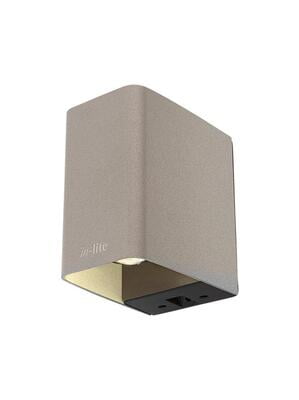

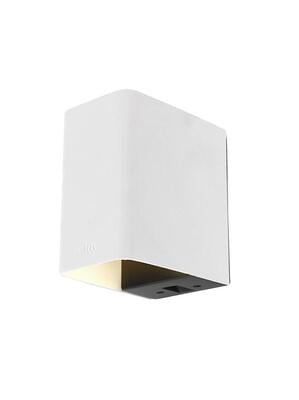

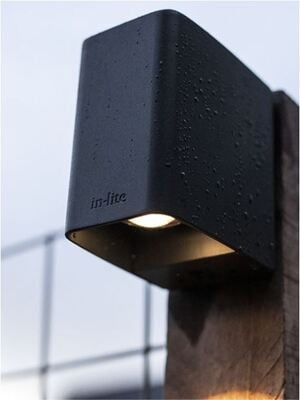

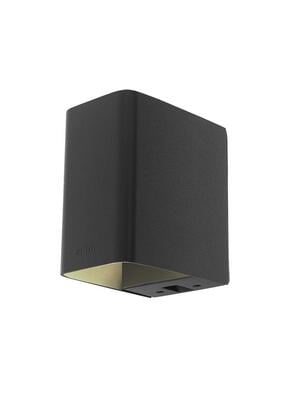

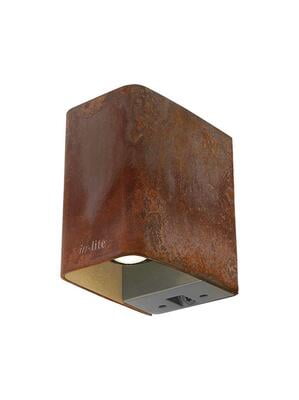

in-lite ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence.
- Produces a focused downward light

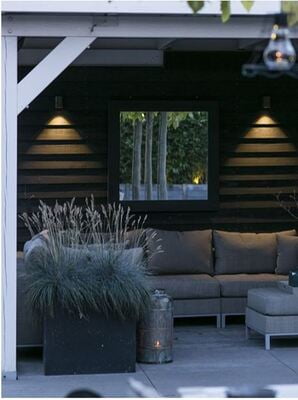

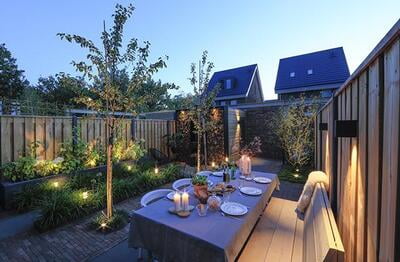

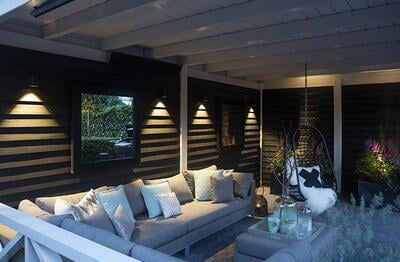

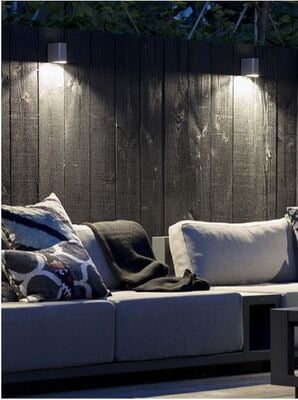

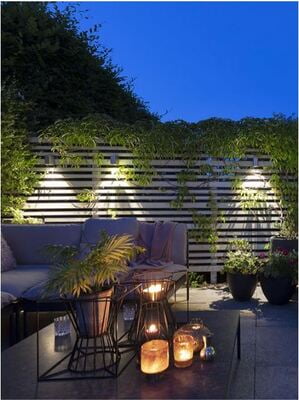

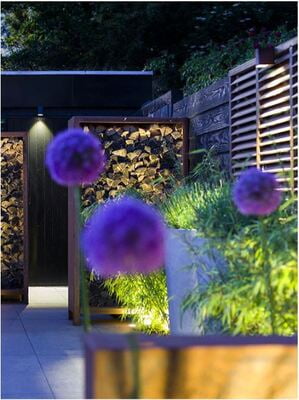

- Designed for illuminating a fence or wall
- Lighting effect can be adjusted with several accessories
Installation advice:

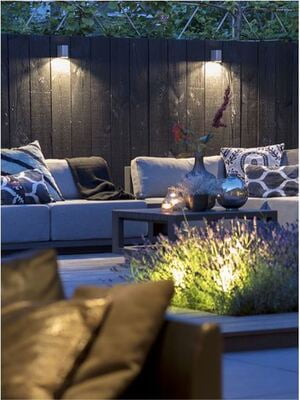

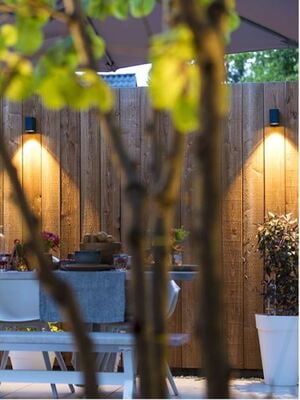

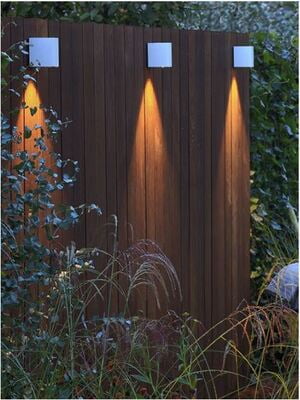

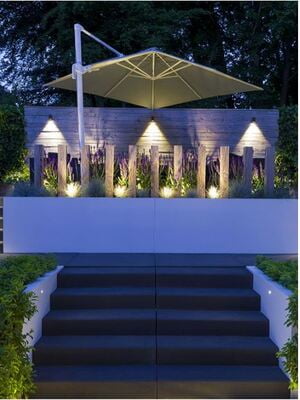

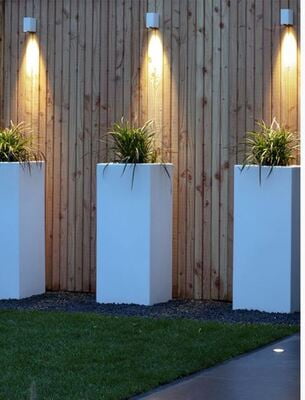

An ACE DOWN every 2 to 2½ meters at a height of 1.4 to 1.8 meters
$210.80 - $331.00
Choose Quantity
Product Details
Specifications

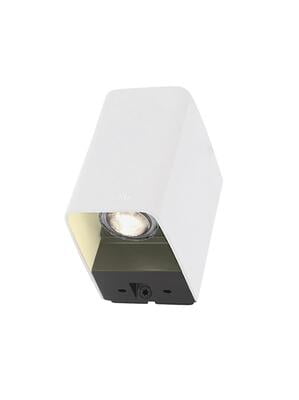

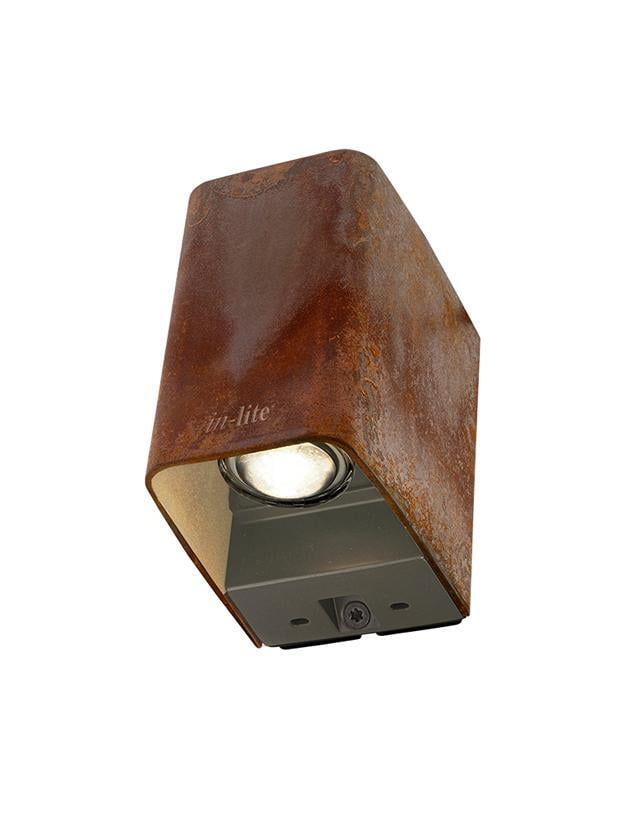

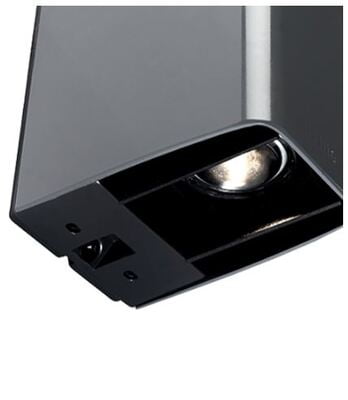

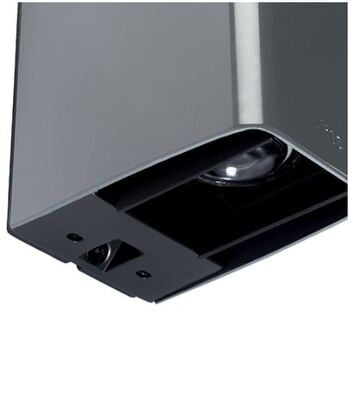

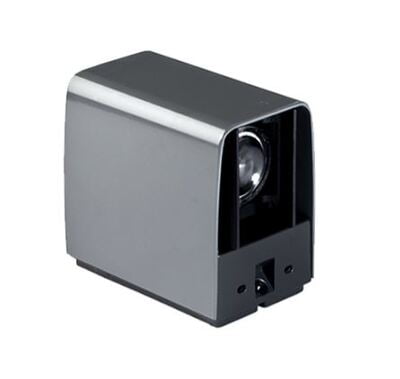

The ACE DOWN wall fixture produces a focused beam of light and can be mounted on a wall or fence. The light source lies deep within the fixture to ensure the light is not blinding. The width of the light provided by the ACE DOWN can be adjusted using the separately available SHUTTER 1.
INSTALLATION INSTRUCTIONS

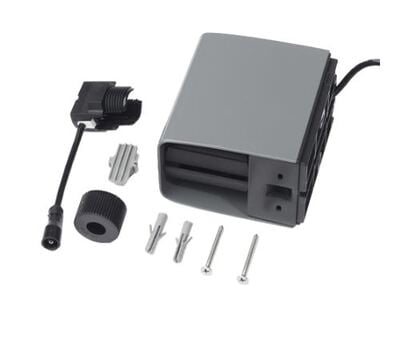

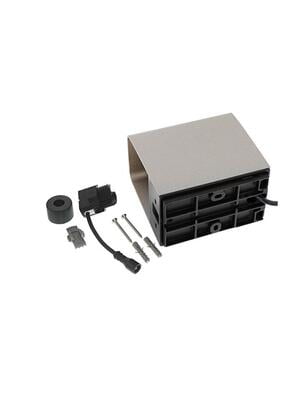

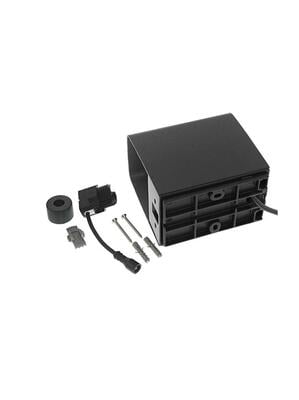

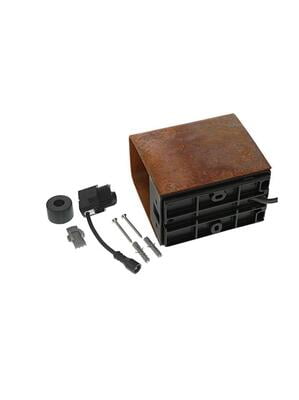

Mount using the included screws and plugs. Watch the instructional videos on the installation tips page for information on installing the in-lite system.
Product information Dimensions:
- Length95 mm | 3.74 in
- Width64 mm | 2.52 in
- Height100 mm | 3.94 in
Materials & finish:
- HousingAluminum
- LensPolycarbonate
Technical specifications:
- Voltage12Vs
- Power3W
- Electric potential5,30VA
- Light sourceLED
- Burn time25000
- Light typeDirect
- Light angle63°
- Light distribution3.50mtr | 12ft
- Light colorWarm white
- Lighting directionDownwards
- Color temperature3000K
- CRI91
- Net luminous flux173lm
- Luminous efficacy58lm/W
- DimmableNo
- IP classIP-55
- Energy labelA+
