in-lite Ace down 100-230V

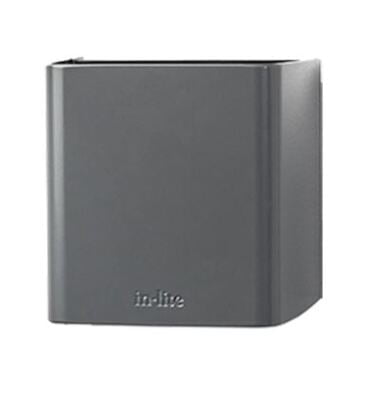

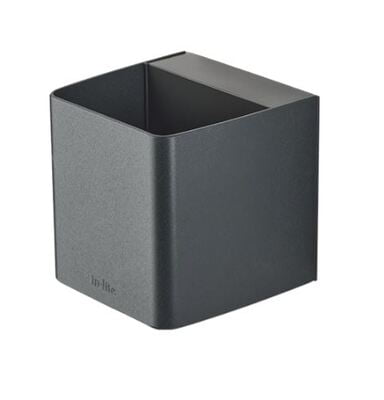

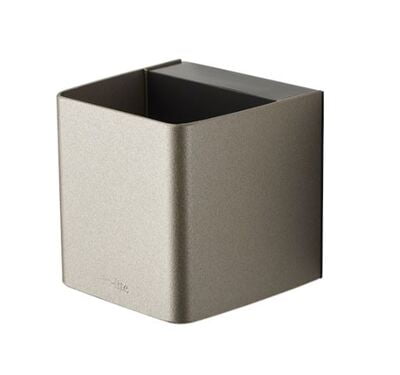

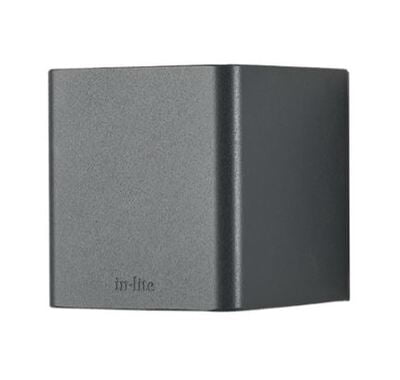

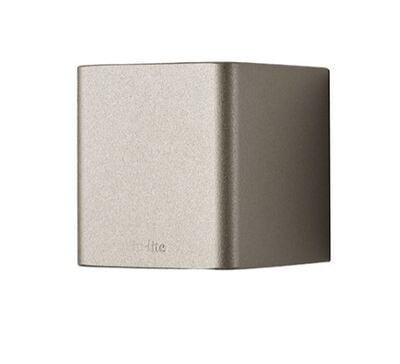

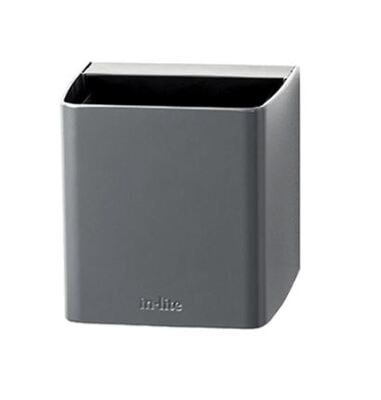

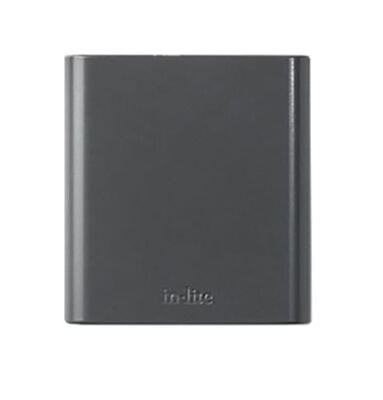

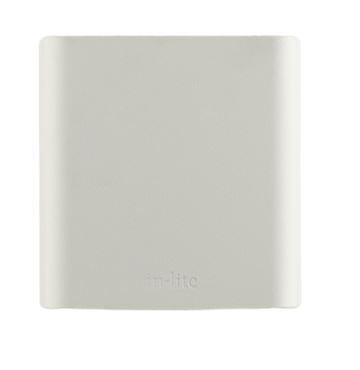

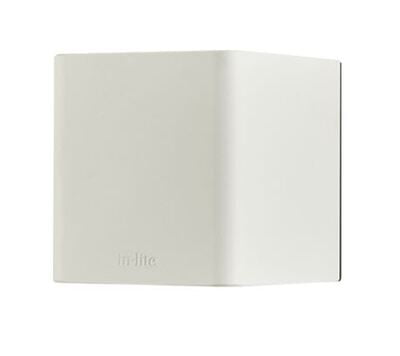

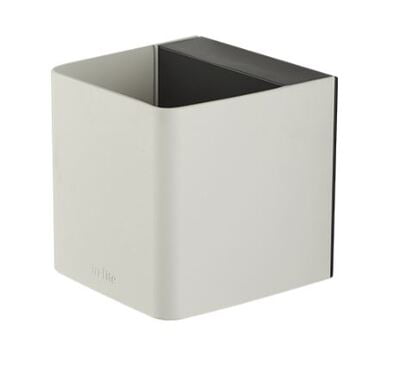

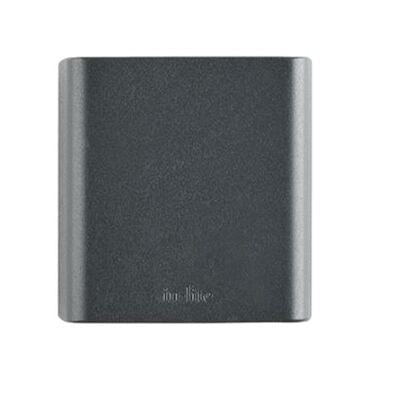

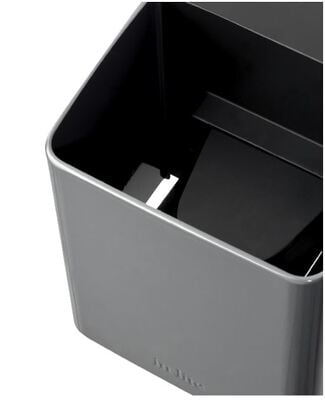

in-lite ACE DOWN 100-230V wall light produces a targeted beam of light and can be installed on a wall or fence.
- Produces a focused downward light
- Designed for illuminating a fence or wall
- Connects directly to 230 volt

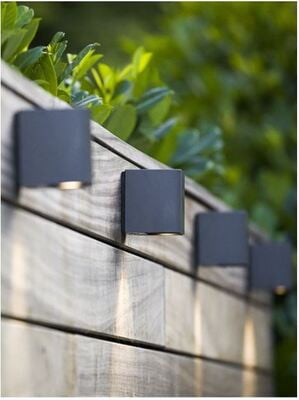

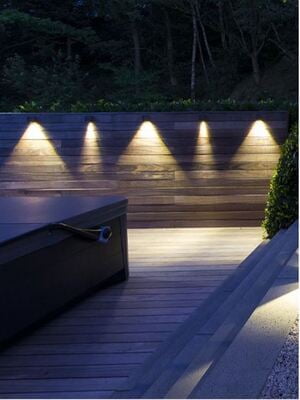

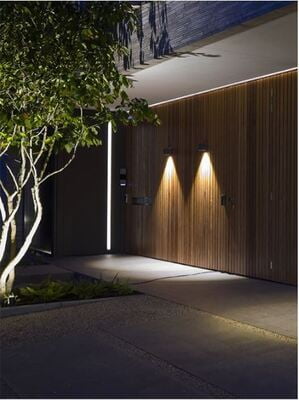

An ACE DOWN 100-230V every 2 to 2½ meters at a height of 1.4 to 1.8 meters

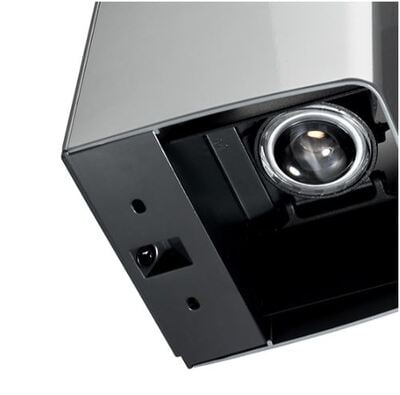

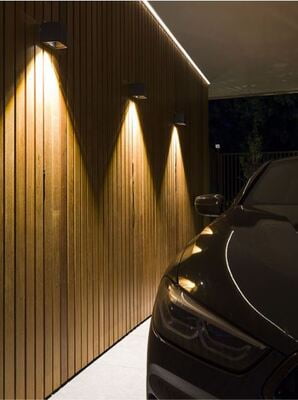

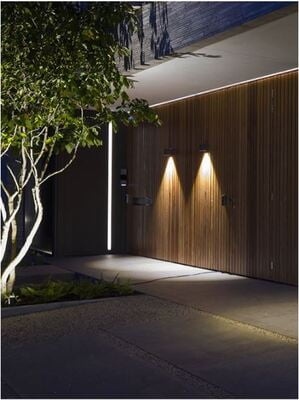

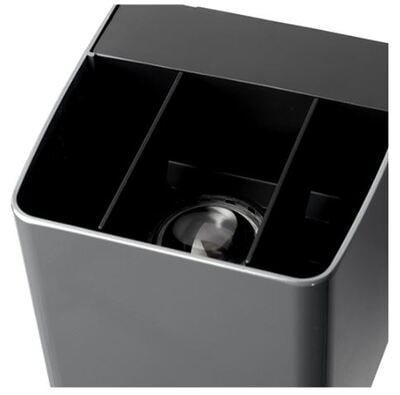

The ACE DOWN 100-230V wall light may only be connected to line voltage. The fixture is therefore suitable for mounting on a house, garage or shed. The fixture provides a focused beam of light downwards. The width of the light bundles provided by the ACE DOWN 100-230V can be adjusted using the separately available SHUTTER 2.

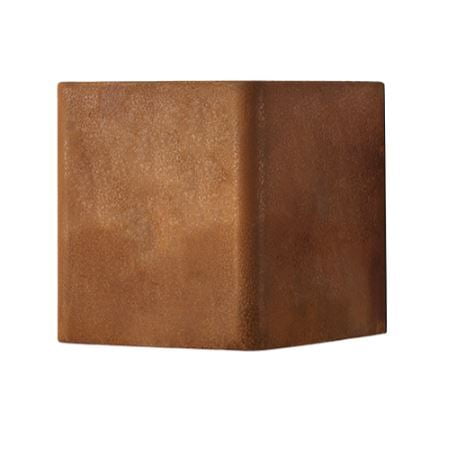

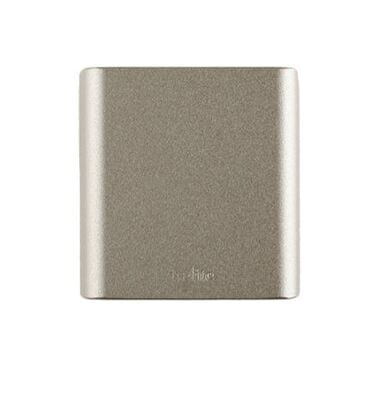

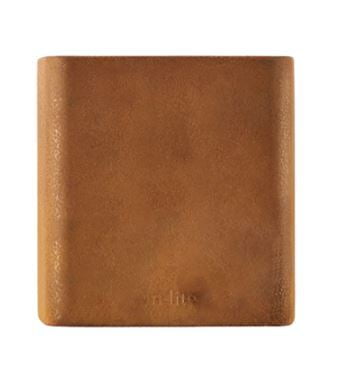

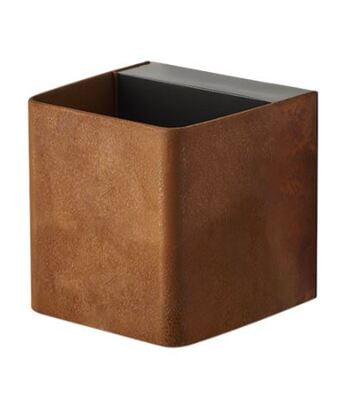

The special finish on the Corten products is achieved through a manual process of coating, sanding, acidifying and rinsing. This makes every in-lite Corten fixture unique and may cause differences between the various products in terms of color, texture and appearance.
Application & Processing
- ApplicationFence, House
Product information Dimensions:
- Length103 mm | 4.06 in
- Width100 mm | 3.94 in
- Height100 mm | 3.94 in
Materials & finish:
- HousingAluminum
Technical specifications:
- Voltage100-230V
- Power4,50W
- Electric potential11,8VA
- Light sourceLED
- Burn time25000
- Light distribution3.5 m | 11.48 ft
- Lighting directionDownwards
- Color temperature3000K
- CRI94
- Net luminous flux186lm
- Luminous efficacy41lm/W
- IP classIP-55
- Energy labelA
