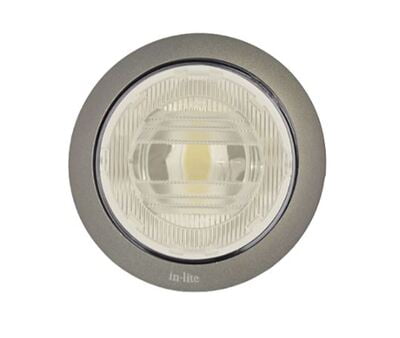

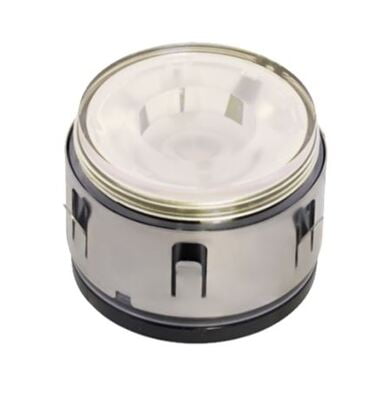

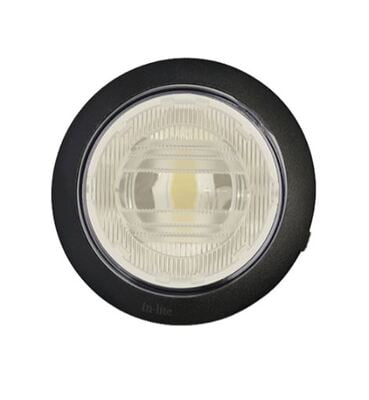

in-lite Big Flux Asymmetric

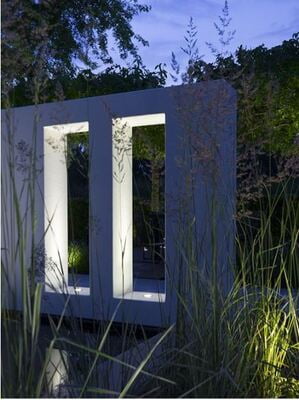

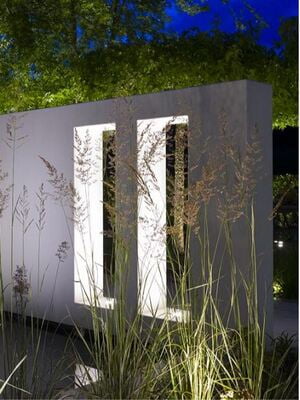

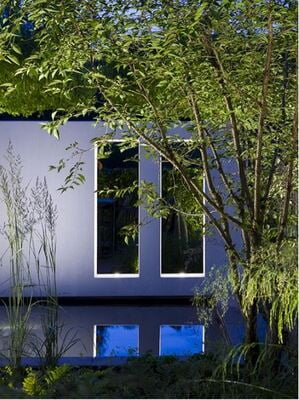

in-lite BIG FLUX ASYMMETRIC has been specially developed to create unique lighting effects for pergolas, wide recesses or passageways.
- Produces a wide strip of light
- Designed for illuminating walls and pergolas

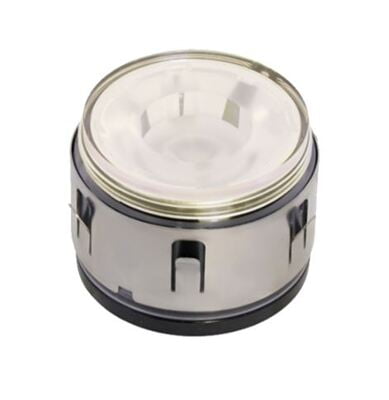

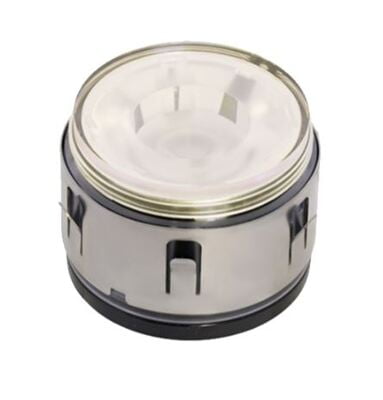

The BIG FLUX ASYMMETRIC produces two different lighting effects with its asymmetric lens. One of the lighting effects is like a wide fan, which has a light angle of 65 degrees and light distribution of 6 meters. However, when the fixture is turned 90 degrees, a narrow strip is created which has a light angle of 18 degrees and light distribution of 6 meters high. This means the fixture creates unique lighting effects for pergolas, wide recesses or passageways. The BIG FLUX ASYMMETRIC can also be perfectly combined with the SPIKE accessory. This ground pin makes it easy to install the BIG FLUX ASYMMETRIC in loose surfaces like soil, gravel or lawn.

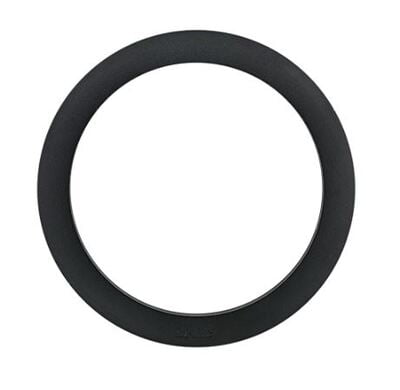

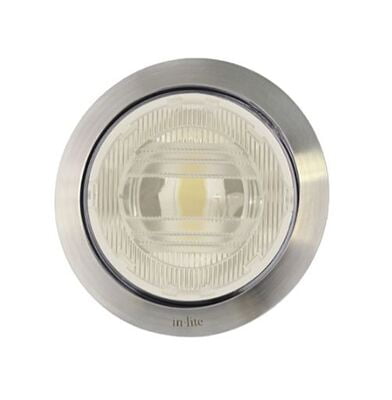

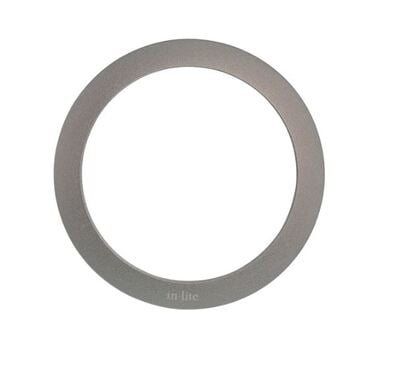

This fixture is a combination of BIG FLUX ASYMMETRIC and RING 68 STAINLESS STEEL. RING 68 STAINLESS STEEL is made of high-quality anodized aluminum.

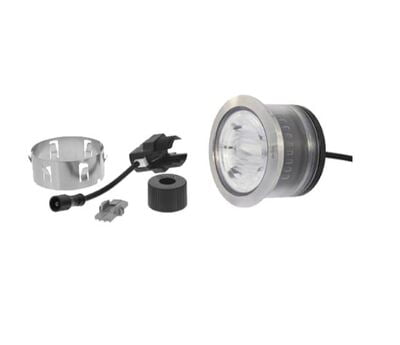

This product is multi-component and the components are packaged separately.
Important: the BIG FLUX ASYMMETRIC can be installed in the BOX-100 accessory. The BIG FLUX NARROW is suitable for use in accessory BOX 1.
Application & Processing
- ApplicationHedge, House, Tree
- ProcessingConcrete, Grass, Wood
Product information Dimensions:
- Height64 mm | 2.52 in
- Diameter68 mm | 2.68 in
- Mounting depth70 mm | 2.76 in
- Mounting diameter60 mm
Materials & finish:
- Electric potential4.2VA
- Light sourceLED
- Burn time25000
- Light distribution6mtr | 19.68ft
- Lighting directionUpwards
- Color temperature3100K
- Net luminous flux258lm
- Luminous efficacy86lm/W
- IP classIP-68
- Energy labelA++
